2557700000 EF-EMC 60 54 BK
- Brand:Weidmüller
- Product Code: 2557700000
- Availability: Out Of Stock

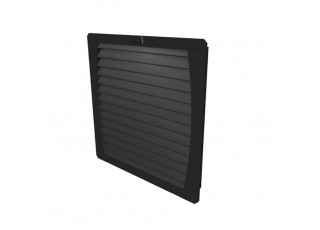

Exhaust filter, IP54, black
| Version | Exhaust filter, IP54, black |
| Order No. | 2557700000 |
| Type | EF-EMC 60 54 BK |
| GTIN (EAN) | 4050118568349 |
| Qty. | 1 items |
| Available until | 10.11.2023 |
| 46 mm | |
| Depth (inches) | 1.811 inch |
| Height | 320 mm |
| Height (inches) | 12.598 inch |
| Width | 320 mm |
| Width (inches) | 12.598 inch |
| Net weight | 763 g |
| Operating temperature range | -40...55 °C |
| Colour | black |
| EMC version | EN 61000-3-2,-3 EN 61000-6-2, 3 |
| Filter class | G 3 |
| Height of installation cut-outs | 292 mm |
| Material | Thermoplastic |
| Mounting depth | 39 mm |
| Mounting height | 7 mm |
| Operating temperature range | -40...55 °C |
| Protection class (UL) | Type 12 |
| Type of mounting | Snap-on |
| UL 94 flammability rating | V-0 |
| Width of installation cut-outs | 292 mm |
| With filter | Yes |
| User Documentation | [Installation- and operating instructions](https://mdcop.weidmueller.com/mediadelivery/asset/900_94199) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002513 |
| ETIM 7.0 | EC002513 |
| ETIM 8.0 | EC002513 |
| ETIM 9.0 | EC002513 |
| ECLASS 9.1 | 27-18-07-06 |
| ECLASS 10.0 | 27-18-07-06 |
| ECLASS 11.0 | 27-18-07-06 |
| ECLASS 12.0 | 27-18-07-06 |
| ECLASS 13.0 | 27-18-07-06 |
| ROHS | Conform |
