2556650000 FF 22 55/230V BK
- Brand:Weidmüller
- Product Code: 2556650000
- Availability: Out Of Stock

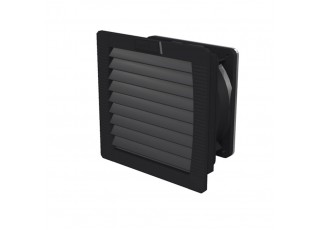

Filter fan, IP55, black
| Version | Filter fan, IP55, black |
| Order No. | 2556650000 |
| Type | FF 22 55/230V BK |
| GTIN (EAN) | 4050118567274 |
| Qty. | 1 items |
| 75 mm | |
| Depth (inches) | 2.953 inch |
| Height | 145 mm |
| Height (inches) | 5.709 inch |
| Width | 145 mm |
| Width (inches) | 5.709 inch |
| Net weight | 700 g |
| Operating temperature range | -40...55 °C |
| Colour | black |
| Current consumption |
|
| EMC version | No |
| Fan type | Roof fan |
| Filter class | G 4 |
| Fuse | 6 A |
| Height of installation cut-outs | 125 mm |
| Mounting depth | 70 mm |
| Mounting height | 5 mm |
| MTBF | 37,500 h |
| Noise emission | 44 dB(A) |
| Operating temperature range | -40...55 °C |
| Power |
|
| Protection class (UL) | Type 12 |
| Rated AC voltage | 230 V |
| Rated voltage | 230 V AC ± 10% |
| Size | 2 |
| Type of connection | Terminal strip |
| Type of mounting | Snap-on |
| UL 94 flammability rating | V-0 |
| UV-resistant | Yes |
| Volume flow with exhaust filter |
|
| Volume flow, free-blowing |
|
| Volume flow, free-blowing at 50 Hz | 56 m³/h |
| Volume flow, free-blowing at 60 Hz | 64 m³/h |
| Width of installation cut-outs | 125 mm |
| With filter | Yes |
| With protective cover | Yes |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_58502) |
| User Documentation | [Installation- and operating instructions](https://mdcop.weidmueller.com/mediadelivery/asset/900_94199) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000320 |
| ETIM 7.0 | EC000320 |
| ETIM 8.0 | EC000320 |
| ETIM 9.0 | EC000320 |
| ECLASS 9.1 | 27-18-07-16 |
| ECLASS 10.0 | 27-18-07-16 |
| ECLASS 11.0 | 27-18-07-16 |
| ECLASS 12.0 | 27-18-07-16 |
| ECLASS 13.0 | 27-18-07-16 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E252704 |
