2548140000 AFS 4 2C BK/BL (50 pcs.)
- Brand:Weidmüller
- Product Code: 2548140000
- Availability: Out Of Stock

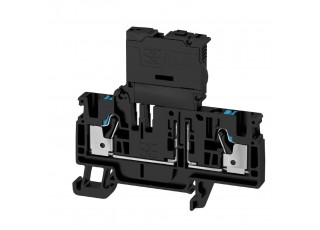

Fuse terminal, PUSH IN, 4 mm², 400 V, 6.3 A, black
| Version | Fuse terminal, PUSH IN, 4 mm², 400 V, 6.3 A, black |
| Order No. | 2548140000 |
| Type | AFS 4 2C BK/BL |
| GTIN (EAN) | 4050118557367 |
| Qty. | 50 items |
| 68 mm | |
| Depth (inches) | 2.677 inch |
| Depth including DIN rail | 69 mm |
| Height | 74 mm |
| Height (inches) | 2.913 inch |
| Width | 6.1 mm |
| Width (inches) | 0.24 inch |
| Net weight | 17.5 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Material | Wemid |
| Colour | black |
| UL 94 flammability rating | V-0 |
| Certificate No. (ATEX) | TUEV17ATEX8064U |
| Certificate No. (IECEX) | IECEXTUR17.0030U |
| Max. voltage (ATEX) | 250 V |
| Current (ATEX) | 6.3 A |
| Wire cross section max. (ATEX) | 4 mm² |
| Max. voltage (IECEX) | 250 V |
| Current (IECEX) | 6.3 A |
| Wire cross section max. (IECEX) | 4 mm² |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Installation advice | Rail |
| Open sides | right |
| Snap-on | No |
| Type of fixing | Snap-on |
| Type of mounting | TS 35 |
| With snap-in pegs | No |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 6 mm² |
| Clamping range, min. | 0.14 mm² |
| Connection cross-section, stranded, max. | 6 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
| Connection direction | top |
| Gauge to IEC 60947-1 | A4 |
| Number of connections | 2 |
| Stripping length | 12 mm |
| Tube length for twin wire-end ferrule |
|
| Tube length for wire-end ferrule with plastic collar DIN 46228/4 |
|
| Tube length for wire-end ferrule without plastic collar DIN 46228/1 |
|
| Twin wire-end ferrules, max. | 1.5 mm² |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Type of connection | PUSH IN |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section, finely stranded, max. | 6 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Certificate No. (CSA) | 200039-70089609 |
| Current size B (CSA) | 10 A |
| Current size C (CSA) | 10 A |
| Current size D (CSA) | 10 A |
| Voltage size B (CSA) | 300 V |
| Voltage size C (CSA) | 150 V |
| Voltage size D (CSA) | 300 V |
| Wire cross section max. (CSA) | 10 AWG |
| Wire cross section min. (CSA) | 26 AWG |
| Cartridge fuse | G-Si. 5 x 20 |
| Leakage current, max. | 0.5 mA |
| Power loss for overload and short-circuit protection for a composite arrangement | 1.6 W at 6.3 A @ 34°C |
| Power loss for overload and short-circuit protection for an individual arrangement | 1,6 W bei 6,3 A @ 31 °C |
| Power loss for short-circuit protection only for a composite arrangement | 2,5 W bei 6,3 A @ 32 °C |
| Power loss for short-circuit protection only for an individual arrangement | 4,0 W bei 6,3 A @ 41 °C |
| Installation advice | Rail |
| Rail | TS 35 |
| Standards | DIN EN 60947-7-3 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 26 |
| Rated cross-section | 4 mm² |
| Rated voltage | 400 V |
| Rated voltage to adjoining terminal | 500 V |
| Rated DC voltage | 400 V |
| Rated current | 6.3 A |
| Current at maximum wires | 6.3 A |
| Standards | DIN EN 60947-7-3 |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Rated impulse withstand voltage | 4 kV |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Certificate No. (cURus) | E60693 |
| Conductor size Factory wiring max. (cURus) | 10 AWG |
| Conductor size Factory wiring min. (cURus) | 26 AWG |
| Conductor size Field wiring max. (cURus) | 10 AWG |
| Conductor size Field wiring min. (cURus) | 26 AWG |
| Current size B (cURus) | 10 A |
| Current size C (cURus) | 10 A |
| Current size D (cURus) | 10 A &nb
|
