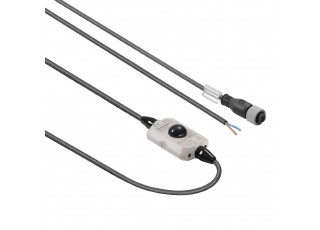

2537710000 WIL-BM-JP-M12-3.0U
- Brand:Weidmüller
- Product Code: 2537710000
- Availability: Out Of Stock
| Order No. | 2537710000 |
| Type | WIL-BM-JP-M12-3.0U |
| GTIN (EAN) | 4050118549164 |
| Qty. | 1 items |
| 36 mm | |
| Depth (inches) | 1.417 inch |
| Height | 23 mm |
| Height (inches) | 0.906 inch |
| Width | 51 mm |
| Width (inches) | 2.008 inch |
| Net weight | 40 g |
| Operating temperature | -20 - 60°C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 82a8bf14-9104-4ca4-ab0c-226d976fdcac |
| Cable Material | PUR |
| Sheathing colour | black |
| Cable length | 3 m |
| Core cross-section | 0.34 mm² |
| Connection thread | M12 |
| Coding | A-coded |
| Tightening torque | 0.8 Nm |
| Wiring | PIN 4: + (black) PIN 3: - (blue) |
| Rated voltage | 24 V DC |
| Rated current | < 3.0 A |
| Protection degree | IP20 |
| Dwell time, min. | 2 s |
| Dwell time, max. | 360 s |
| Detection range |
|
| Detection area (angle) | 110 ° |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002955 |
| ETIM 7.0 | EC002955 |
| ETIM 8.0 | EC002955 |
| ETIM 9.0 | EC002955 |
| ECLASS 11.0 | 27-11-06-92 |
| ECLASS 12.0 | 27-11-06-92 |
| ECLASS 13.0 | 27-11-06-92 |
| Approvals |  |
| ROHS | Conform |
