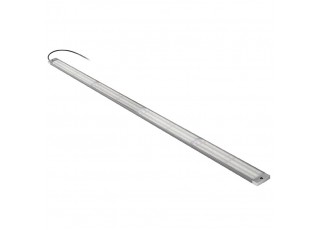

2535920000 WIL-LWXXXX-6500D024-860SXX5.0BXXXXXXXX
- Brand:Weidmüller
- Product Code: 2535920000
- Availability: Out Of Stock
| Order No. | 2535920000 |
| Type | WIL-LWXXXX-6500D024-860SXX5.0BXXXXXXXX |
| GTIN (EAN) | 4050118547580 |
| Qty. | 1 items |
| 40 mm | |
| Depth (inches) | 1.575 inch |
| Height | 8 mm |
| Height (inches) | 0.315 inch |
| Width | 860 mm |
| Width (inches) | 33.858 inch |
| Net weight | 650 g |
| Operating temperature | -20 - 60°C |
| EPREL Registration number | 1323295 |
| Cable Material | PUR |
| Sheathing colour | black |
| Cable length | 5 m |
| Core cross-section | 0.34 mm² |
| Version | Cable end open |
| Connection thread | without |
| Number of poles | 2 |
| Wiring | Pin 4 (Strand: black) control white LED, Pin 3 (Strand: blue) |
| Rated voltage | 24 V DC |
| Rated current | 1.23 A |
| Power | 29.6 W |
| Dimmable | Yes |
| Electronic equipment on rolling stock | No |
| Recommended class according to UL for use of an power supply | NEC Class 2 |
| Shape of the LED module | Rectangular |
| Type of connection | Pre-assembled cable |
| Number of LEDs | 168 |
| Light colour (CCT) | 6500K White |
| Luminosity | 3,470 cd |
| Light current | 2,473 lm |
| Emitting angle | 40 ° |
| Illumination level | 844 lux |
| Operating life | 60.000 h |
| Type of mounting | Screw mounting |
| Drill hole spacing | 845 mm |
| Impact resistance | IK05 |
| Protection degree | IP67 |
| Efficiency class (according to EU Directive No. 874/2012) | G |
| Housing main material | hard anodised aluminium |
| Encapsulation compound | PUR V0 |
| Material of end caps | Diecast zinc nickel-plated |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_89534) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2535920000) |
| User Documentation | [Designation key WIL](https://mdcop.weidmueller.com/mediadelivery/asset/900_188431) [Flyer WIL](https://mdcop.weidmueller.com/mediadelivery/asset/900_284678) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000996 |
| ETIM 7.0 | EC000996 |
| ETIM 8.0 | EC000996 |
| ETIM 9.0 | EC000996 |
| ECLASS 9.1 | 27-11-06-35 |
| ECLASS 10.0 | 27-11-06-35 |
| ECLASS 11.0 | 27-11-06-35 |
| ECLASS 12.0 | 27-11-06-35 |
| ECLASS 13.0 | 27-11-06-35 |
| Approvals |  |
| ROHS | Conform |
