2534500000 A3C 1.5 RD (50 pcs.)

Brand:Weidmüller
Product Code: 2534500000
Availability: Out Of Stock

Get information

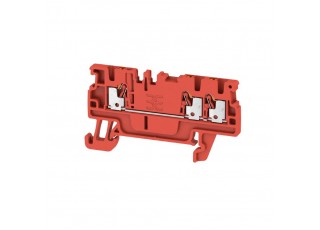

Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, red

Version	Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, red
Order No.	2534500000
Type	A3C 1.5 RD
GTIN (EAN)	4050118546217
Qty.	50 items

Dimensions and weights

	33.5 mm
Depth (inches)	1.319 inch
Depth including DIN rail	34 mm
Height	61.5 mm
Height (inches)	2.421 inch
Width	3.5 mm
Width (inches)	0.138 inch
Net weight	4.791 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Material data

Material	Wemid
Colour	red
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	TUEV16ATEX7909U
Certificate No. (IECEX)	IECEXTUR16.0036U
Max. voltage (ATEX)	440 V
Current (ATEX)	15 A
Wire cross section max. (ATEX)	1.5 mm²
Max. voltage (IECEX)	440 V
Current (IECEX)	15 A
Wire cross section max. (IECEX)	1.5 mm²
Marking EN 60079-7	Ex eb II C Gb
Ex 2014/34/EU label	II 2 G D

System specifications

End cover plate required	Yes
Number of potentials	1
Rail	TS 35

Additional technical data

Installation advice	Rail
Open sides	right
Snap-on	No
Type of fixing	Snap-on
Type of mounting	TS 35
With snap-in pegs	No

Conductors for clamping (rated connection)

Blade size	0.4 x 2.0 mm
Clamping range, max.	1.5 mm²
Clamping range, min.	0.14 mm²
Connection cross-section, stranded, max.	1.5 mm²
Connection cross-section, stranded, min.	0.5 mm²
Connection direction	top
Gauge to IEC 60947-1	A1
Number of connections	3
Stripping length	8 mm
Tube length for wire-end ferrule with plastic collar DIN 46228/4	Tube length: min.: 6 mm max.: 8 mm Cross-section for conductor connection: nominal: 0.25 mm² min.: 0.14 mm² max.: 0.75 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1	Tube length: min.: 6 mm max.: 8 mm Cross-section for conductor connection: nominal: 0.25 mm² min.: 0.14 mm² max.: 0.75 mm² Tube length: nominal: 6 mm Cross-section for conductor connection: min.: 0.5 mm² max.: 1 mm² Tube length: nominal: 10 mm Cross-section for conductor connection: nominal: 1.5 mm²
Type of connection	PUSH IN
Wire connection cross section AWG, max.	AWG 14
Wire connection cross section AWG, min.	AWG 26
Wire connection cross section, finely stranded, max.	1.5 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	1 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	1.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

CSA rating data

Certificate No. (CSA)	200039-70089609
Current size B (CSA)	13 A
Current size C (CSA)	13 A
Current size D (CSA)	5 A
Voltage size B (CSA)	300 V
Voltage size C (CSA)	300 V
Voltage size D (CSA)	600 V
Wire cross section max. (CSA)	14 AWG
Wire cross section min. (CSA)	26 AWG

General

Installation advice	Rail
Rail	TS 35
Standards	IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 14
Wire connection cross section AWG, min.	AWG 26

Rating data

Rated cross-section	1.5 mm²
Rated voltage	500 V
Rated DC voltage	500 V
Rated current	17.5 A
Current at maximum wires	17.5 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1.83 mΩ
Rated impulse withstand voltage	6 kV
Power loss in accordance with IEC 60947-7-x	0.56 W
Pollution severity	3
Surge voltage category	III

UL rating data

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	14 AWG
Conductor size Factory wiring min. (cURus)	26 AWG
Conductor size Field wiring max. (cURus)	14 AWG
Conductor size Field wiring min. (cURus)	26 AWG
Current size B (cURus)	13 A
Current size C (cURus)	13 A
Current size D (cURus)	5 A
Voltage size B (cURus)	300 V
Voltage size C (cURus)	300 V
Voltage size D (cURus)	600 V

Downloads

Approval/Certificate/Document of Conformity	[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_58084) [DE PT0101 20171010 016 ISSUE01.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_68294) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284539) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) [UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253939) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_58128) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_58163) [DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152120) [CCC Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_178457) [CB Testreport](https://mdcop.weidmueller.com/mediadelivery/asset/900_225033) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_225034) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253942)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66322)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2534500000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2534500000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2534500000&norm=0)
Tender specification	[Klippon® Connect 2534500000 DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_76246) [Klippon® Connect 2534500000 EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_76248)
User Documentation	[NTI_A3C 1.5.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_58141) [NTI_ALO 6](https://mdcop.weidmueller.com/mediadelivery/asset/900_58156) [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) [NTI ALO16](https://mdcop.weidmueller.com/mediadelivery/asset/900_103845) [User Manual AXC 1.5-16](https://mdcop.weidmueller.com/mediadelivery/asset/900_229201)
