2496950000 SM 27/18-22 MM SW VPE100 (100 pcs.)
- Brand:Weidmüller
- Product Code: 2496950000
- Availability: Out Of Stock

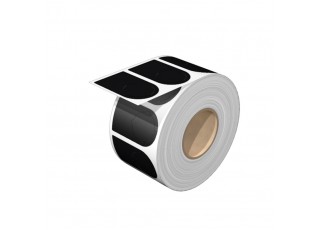

SwitchMark, Device markers, 47.75 x 27 mm, black
| Version | SwitchMark, Device markers, 47.75 x 27 mm, black |
| Order No. | 2496950000 |
| Type | SM 27/18-22 MM SW VPE100 |
| GTIN (EAN) | 4050118508451 |
| Qty. | 100 items |
| 0.1 mm | |
| Depth (inches) | 0.004 inch |
| Height | 47.75 mm |
| Height (inches) | 1.88 inch |
| Width | 27 mm |
| Width (inches) | 1.063 inch |
| Diameter | 22 mm |
| Net weight | 0.1 g |
| Operating temperature range | -40...120 °C |
| Adhesive | Acrylate adhesive |
| Approval acc. to UL 969 | Yes |
| Colour | black |
| Halogen | No |
| Material | Polyester |
| Operating temperature range | -40...120 °C |
| Operating temperature range, max. | 120 °C |
| Operating temperature range, min. | -40 °C |
| Size of labelling field | 18 x 27 mm |
| UL 94 flammability rating | V-0 |
| Version | halogen-free Self-adhesive |
| Width | 27 mm |
| Diameter | 22 mm |
| Halogen | No |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2496950000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2496950000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
