2490520000 A3C 10 (25 pcs.)

Brand:Weidmüller
Product Code: 2490520000
Availability: Out Of Stock

Get information

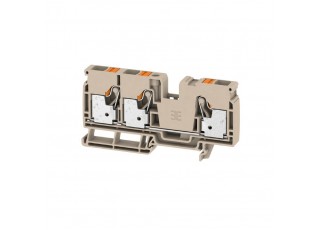

Feed-through terminal, PUSH IN, 10 mm², 1000 V, 57 A, dark beige

Version	Feed-through terminal, PUSH IN, 10 mm², 1000 V, 57 A, dark beige
Order No.	2490520000
Type	A3C 10
GTIN (EAN)	4050118500394
Qty.	25 items

Dimensions and weights

	51.5 mm
Depth (inches)	2.028 inch
Depth including DIN rail	52.5 mm
Height	102 mm
Height (inches)	4.016 inch
Width	10 mm
Width (inches)	0.394 inch
Net weight	43.691 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Material data

Material	Wemid
Colour	dark beige
Colour of operational elements	orange
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Marking EN 60079-7	Ex eb II C Gb
Ex 2014/34/EU label	II 2 G D

System specifications

End cover plate required	Yes
Number of potentials	1
Number of levels	1
Number of clamping points per level	3
Number of potentials per tier	1
Rail	TS 35

Additional technical data

Explosion-tested version	Yes
Installation advice	Rail
Open sides	right
Snap-on	No
Type of fixing	Snap-on
Type of mounting	TS 35
With snap-in pegs	No

Conductors for clamping (rated connection)

Blade size	1.0 x 5.5 mm
Clamping range, max.	16 mm²
Clamping range, min.	0.5 mm²
Connection cross-section, stranded, max.	16 mm²
Connection cross-section, stranded, min.	0.5 mm²
Connection direction	top
Gauge to IEC 60947-1	A6
Number of connections	3
Stripping length	18 mm
Tube length for twin wire-end ferrule	Tube length: min.: 18 mm nominal: 18 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 10 mm² Tube length: min.: 12 mm max.: 18 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 4 mm²
Tube length for wire-end ferrule with plastic collar DIN 46228/4	Tube length: min.: 18 mm nominal: 18 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 10 mm² Tube length: min.: 12 mm max.: 18 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 4 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1	Tube length: min.: 18 mm nominal: 18 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 10 mm²
Twin wire-end ferrules, max.	4 mm²
Twin wire-end ferrules, min.	0.5 mm²
Type of connection	PUSH IN
Wire connection cross section AWG, max.	AWG 6
Wire connection cross section AWG, min.	AWG 20
Wire connection cross section, finely stranded, max.	16 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	10 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

CSA rating data

Certificate No. (CSA)	200039-70089609
Current size B (CSA)	55 A
Current size C (CSA)	55 A
Current size D (CSA)	5 A
Voltage size B (CSA)	600 V
Voltage size C (CSA)	600 V
Voltage size D (CSA)	600 V
Wire cross section max. (CSA)	6 AWG
Wire cross section min. (CSA)	20 AWG

General

Installation advice	Rail
Rail	TS 35
Standards	DIN EN 60947-7-1
Wire connection cross section AWG, max.	AWG 6
Wire connection cross section AWG, min.	AWG 20

Rating data

Rated cross-section	10 mm²
Rated voltage	1,000 V
Rated DC voltage	1,000 V
Rated current	57 A
Current at maximum wires	57 A
Standards	DIN EN 60947-7-1
Volume resistance according to IEC 60947-7-x	0.56 mΩ
Rated impulse withstand voltage	8 kV
Power loss in accordance with IEC 60947-7-x	1.82 W
Pollution severity	3
Surge voltage category	III

UL rating data

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	6 AWG
Conductor size Factory wiring min. (cURus)	20 AWG
Conductor size Field wiring max. (cURus)	6 AWG
Conductor size Field wiring min. (cURus)	20 AWG
Current size B (cURus)	55 A
Current size C (cURus)	55 A
Current size D (cURus)	5 A
Voltage size B (cURus)	600 V
Voltage size C (cURus)	600 V
Voltage size D (cURus)	600 V

Downloads

Approval/Certificate/Document of Conformity	[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_103916) [UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253939) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_58128) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_58163) [DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152120) [CCC Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_178457) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253942) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_47981) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284539) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66262)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2490520000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2490520000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2490520000&norm=0)
Tender specification	[Klippon® Connect 2490520000 EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_76145) [Klippon® Connect 2490520000 DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_76146)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) [NTI A3C 10](https://mdcop.weidmueller.com/mediadelivery/asset/900_106001) [User Manual AXC 1.5-16](https://mdcop.weidmueller.com/mediadelivery/asset/900_229201)
