2482160000 APGTB 1.5 FT 2C/1 (50 pcs.)

Brand:Weidmüller
Product Code: 2482160000
Availability: Out Of Stock

Get information

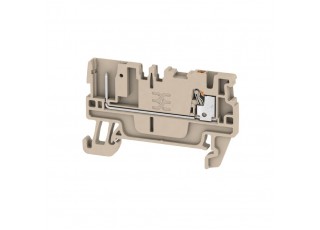

Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, dark beige

Version	Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, dark beige
Order No.	2482160000
Type	APGTB 1.5 FT 2C/1
GTIN (EAN)	4050118494228
Qty.	50 items

Dimensions and weights

	33.5 mm
Depth (inches)	1.319 inch
Depth including DIN rail	34.5 mm
Height	55 mm
Height (inches)	2.165 inch
Width	3.5 mm
Width (inches)	0.138 inch
Net weight	3.9 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Material data

Material	Wemid
Colour	dark beige
Colour of operational elements	orange
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	TUEV16ATEX7940U
Certificate No. (IECEX)	IECEXTUR16.0046U
Max. voltage (ATEX)	500 V
Current (ATEX)	10.5 A
Wire cross section max. (ATEX)	1.5 mm²
Max. voltage (IECEX)	500 V
Current (IECEX)	10.5 A
Wire cross section max. (IECEX)	1.5 mm²
Marking EN 60079-7	Ex ec II C Gc
Ex 2014/34/EU label	II 3 G D

System specifications

End cover plate required	Yes
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Additional technical data

Explosion-tested version	No
Installation advice	Rail
Open sides	right
Snap-on	No
Type of fixing	Snap-on
Type of mounting	TS 35
With snap-in pegs	No

Conductors for clamping (rated connection)

Blade size	0.4 x 2.0 mm
Clamping range, max.	1.5 mm²
Clamping range, min.	0.14 mm²
Connection cross-section, stranded, max.	1.5 mm²
Connection cross-section, stranded, min.	0.5 mm²
Connection direction	top
Gauge to IEC 60947-1	A1
Number of connections	2
Stripping length	8 mm
Type of connection	PUSH IN
Type of connection 2	Plug-in connection
Wire connection cross section AWG, max.	AWG 14
Wire connection cross section AWG, min.	AWG 26
Wire connection cross section, finely stranded, max.	1.5 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	1 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	1.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

CSA rating data

Certificate No. (CSA)	200039-70089609
Current size B (CSA)	13 A
Current size C (CSA)	13 A
Current size D (CSA)	5 A
Voltage size B (CSA)	300 V
Voltage size C (CSA)	300 V
Voltage size D (CSA)	600 V
Wire cross section max. (CSA)	14 AWG
Wire cross section min. (CSA)	26 AWG

General

Installation advice	Rail
Rail	TS 35
Standards	In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 14
Wire connection cross section AWG, min.	AWG 26

PE rating data

PEN function

Rating data

Rated cross-section	1.5 mm²
Rated voltage	500 V
Rated DC voltage	500 V
Rated current	17.5 A
Current at maximum wires	17.5 A
Standards	In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1.83 mΩ
Rated impulse withstand voltage	6 kV
Power loss in accordance with IEC 60947-7-x	0.56 W
Pollution severity	3
Surge voltage category	III

UL rating data

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	14 AWG
Conductor size Factory wiring min. (cURus)	26 AWG
Conductor size Field wiring max. (cURus)	14 AWG
Conductor size Field wiring min. (cURus)	26 AWG
Current size B (cURus)	13 A
Current size C (cURus)	13 A
Current size D (cURus)	5 A
Voltage size B (cURus)	300 V
Voltage size C (cURus)	300 V
Voltage size D (cURus)	600 V

Downloads

Approval/Certificate/Document of Conformity	[ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_58165) [Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_105802) [NTI APGTB 1.5 FT 2C/1](https://mdcop.weidmueller.com/mediadelivery/asset/900_105828) [IECEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_58127) [DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152120) [CCC Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_178468) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_47983) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284539) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66196)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2482160000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2482160000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2482160000&norm=0)
Tender specification	[Klippon® Connect 2482160000 DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_76108) [Klippon® Connect 2482160000 EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_76109)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) [User Manual APGTB FT](https://mdcop.weidmueller.com/mediadelivery/asset/900_229205)
