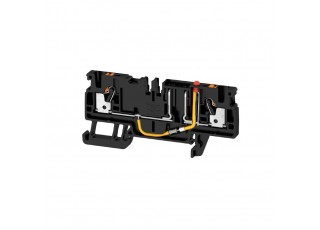

2466600000 AFS 2.5 CF 2C 24V BK (50 pcs.)
- Brand:Weidmüller
- Product Code: 2466600000
- Availability: Out Of Stock
Fuse terminal, PUSH IN, 2.5 mm², 24 V, 10 A, black
| Version | Fuse terminal, PUSH IN, 2.5 mm², 24 V, 10 A, black |
| Order No. | 2466600000 |
| Type | AFS 2.5 CF 2C 24V BK |
| GTIN (EAN) | 4050118480726 |
| Qty. | 50 items |
| 37.65 mm | |
| Depth (inches) | 1.482 inch |
| Depth including DIN rail | 38.4 mm |
| Height | 77.5 mm |
| Height (inches) | 3.051 inch |
| Width | 5.1 mm |
| Width (inches) | 0.201 inch |
| Net weight | 9.52 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Material | Wemid |
| Colour | black |
| Version | with LED |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Open sides | right |
| Snap-on | No |
| Type of fixing | Snap-on |
| Type of mounting | TS 35 |
| With snap-in pegs | No |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.14 mm² |
| Connection cross-section, stranded, max. | 2.5 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
| Connection direction | top |
| Gauge to IEC 60947-1 | A3 |
| Number of connections | 2 |
| Stripping length | 10 mm |
| Tube length for twin wire-end ferrule |
|
| Tube length for wire-end ferrule with plastic collar DIN 46228/4 |
|
| Tube length for wire-end ferrule without plastic collar DIN 46228/1 |
|
| Twin wire-end ferrules, max. | 0.75 mm² |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Type of connection | PUSH IN |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 28 |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 2.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Certificate No. (CSA) | 200039-70089609 |
| Current size B (CSA) | 16 A |
| Current size C (CSA) | 16 A |
| Voltage size B (CSA) | 300 V |
| Voltage size C (CSA) | 300 V |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section min. (CSA) | 28 AWG |
| Cartridge fuse | mini fuse |
| Display | Red LED |
| Fuse holder (cartridge holder) | Pivoting |
| Leakage current, max. | 0.5 mA |
| Rail | TS 35 |
| Standards | In accordance with IEC 60947-7-3 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 28 |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 24 V |
| Rated voltage to adjoining terminal | 500 V |
| Rated DC voltage | 24 V |
| Rated current | 10 A |
| Current at maximum wires | 10 A |
| Standards | In accordance with IEC 60947-7-3 |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Certificate No. (cURus) | E60693 |
| Conductor size Factory wiring max. (cURus) | 12 AWG |
| Conductor size Factory wiring min. (cURus) | 28 AWG |
| Conductor size Field wiring max. (cURus) | 12 AWG |
| Conductor size Field wiring min. (cURus) | 28 AWG |
| Current size B (cURus) | 16 A |
| Current size C (cURus) | 16 A |
| Current size D (cURus) | 10 A |
| Voltage size B (cURus) | 300 V |
| Voltage size C (cURus) | 300 V |
| Voltage size D (cURus) | 300 V |
| Product information | The voltage depends on the selected fuse element or the selected indicator light |
| Approval/Certificate/Document of Conformity | [DE PT0102 20171010 042 ISSUE01.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_68323) [DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152120) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284542) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/a
|
