1989860000 ADT 2.5 4C (50 pcs.)
- Brand:Weidmüller
- Product Code: 1989860000
- Availability: Out Of Stock

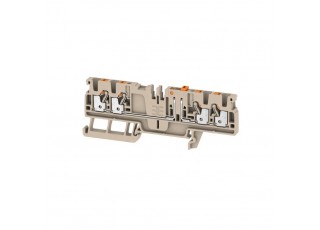

Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, dark beige
| Version | Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, dark beige |
| Order No. | 1989860000 |
| Type | ADT 2.5 4C |
| GTIN (EAN) | 4050118374506 |
| Qty. | 50 items |
| 37.65 mm | |
| Depth (inches) | 1.482 inch |
| Depth including DIN rail | 38.4 mm |
| Height | 96 mm |
| Height (inches) | 3.78 inch |
| Width | 5.1 mm |
| Width (inches) | 0.201 inch |
| Net weight | 12.779 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Material | Wemid |
| Colour | dark beige |
| Colour of operational elements | orange |
| UL 94 flammability rating | V-0 |
| Certificate No. (ATEX) | TUEV16ATEX7939U |
| Certificate No. (IECEX) | IECEXTUR16.0045U |
| Max. voltage (ATEX) | 400 V |
| Current (ATEX) | 18 A |
| Wire cross section max. (ATEX) | 2.5 mm² |
| Max. voltage (IECEX) | 400 V |
| Current (IECEX) | 18 A |
| Wire cross section max. (IECEX) | 2.5 mm² |
| Marking EN 60079-7 | Ex ec II C Gc |
| Ex 2014/34/EU label | II 3 G D |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 4 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Installation advice | Rail |
| Open sides | right |
| Snap-on | No |
| Type of fixing | Snap-on |
| Type of mounting | TS 35 |
| With snap-in pegs | No |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.14 mm² |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
| Connection direction | top |
| Gauge to IEC 60947-1 | A3 |
| Number of connections | 4 |
| Stripping length | 10 mm |
| Tube length for twin wire-end ferrule |
|
| Tube length for wire-end ferrule with plastic collar DIN 46228/4 |
|
| Tube length for wire-end ferrule without plastic collar DIN 46228/1 |
|
| Twin wire-end ferrules, max. | 0.75 mm² |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Type of connection | PUSH IN |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 28 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 2.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Certificate No. (CSA) | 200039-70089609 |
| Current size B (CSA) | 20 A |
| Current size C (CSA) | 20 A |
| Current size D (CSA) | 5 A |
| Voltage size B (CSA) | 300 V |
| Voltage size C (CSA) | 300 V |
| Voltage size D (CSA) | 600 V |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section min. (CSA) | 28 AWG |
| Cross-disconnect | without |
| Integral test socket | Yes |
| Slitting | Pivoting |
| Installation advice | Rail |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 28 |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 500 V |
| Rated DC voltage | 500 V |
| Rated current | 20 A |
| Current at maximum wires | 20 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Certificate No. (cURus) | E60693 |
| Conductor size Factory wiring max. (cURus) | 12 AWG |
| Conductor size Factory wiring min. (cURus) | 28 AWG |
| Conductor size Field wiring max. (cURus) | 12 AWG
|
