1935460000 ZT 2.5/3AN/1 GN (50 pcs.) - Manufacturer Hydro-Funk GmbH page 49

1935460000 ZT 2.5/3AN/1 GN (50 pcs.)

1935460000 ZT 2.5/3AN/1 GN (50 pcs.)

Brand:Weidmüller
Product Code: 1935460000
Availability: Out Of Stock

Get information

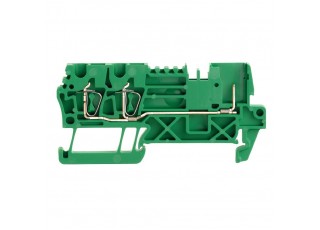

Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, Direct mounting

General ordering data

Version	Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, Direct mounting
Order No.	1935460000
Type	ZT 2.5/3AN/1 GN
GTIN (EAN)	4032248600090
Qty.	50 items
Delivery status	This article will no longer be available in the future.
Available until	30.03.2022
Alternative product	[1815090000](~/p/1815090000)

Dimensions and weights

	34.5 mm
Depth (inches)	1.358 inch
Depth including DIN rail	35 mm
Height	71.5 mm
Height (inches)	2.815 inch
Width	5.1 mm
Width (inches)	0.201 inch
Net weight	8.66 g

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Material	Wemid
Colour	green
UL 94 flammability rating	V-0

System specifications

Version	2 tension-clamp connections - 1 plug-in connection pluggable
Number of levels	1
Number of clamping points per level	3
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35

Additional technical data

Installation advice	Direct mounting
Type of mounting	Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection

Plug-in connection

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clamping range, max.	4 mm²
Clamping range, min.	0.13 mm²
Connection direction	top
Gauge to IEC 60947-1	A2
Number of connections	3
Stripping length	10 mm
Type of connection	Tension-clamp connection
Type of connection 2	Plug-in connection
Wire connection cross section AWG, max.	AWG 26
Wire connection cross section AWG, min.	AWG 12
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	4 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

CSA rating data

Certificate number (cCSAus)	154685-1460993
Current size C (cCSAus)	20 A
Current size D (cCSAus)	5 A
Voltage size C (cCSAus)	300 V
Voltage size D (cCSAus)	600 V
Wire cross section max. (cCSAusX)	12 AWG
Wire cross section min. (cCSAusX)	26 AWG

TS 35 offset

47 mm

Installation advice	Direct mounting
Rail	TS 35
Standards	In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 26
Wire connection cross section AWG, min.	AWG 12

Rated cross-section	2.5 mm²
Rated voltage	500 V
Max. voltage of clamp support & pluggable system	690 V
Rated DC voltage	500 V
Rated current	24 A
Standards	In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Power loss in accordance with IEC 60947-7-x	0.77 W

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	12 AWG
Conductor size Factory wiring min. (cURus)	26 AWG
Conductor size Field wiring max. (cURus)	12 AWG
Conductor size Field wiring min. (cURus)	26 AWG
Current size C (cURus)	20 A
Current size D (cURus)	5 A
Voltage size C (cURus)	300 V
Voltage size D (cURus)	600 V

Approval/Certificate/Document of Conformity	[DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152130) [CB Testreport](https://mdcop.weidmueller.com/mediadelivery/asset/900_185121) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_185122) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36850) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284531)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_295697)
Engineering Data	[Zuken E3.S](LINK/CAE_EN.html)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1935460000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1935460000&norm=0)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-01

Approvals	![CCSAUS](/picture/CCSAUS.gif) ![CE](/picture/CE.gif) ![CURUS](/picture/CURUS.gif) ![DETNORVER](/picture/DETNORVER.gif) ![KEMAKEUR](/picture/KEMAKEUR.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
