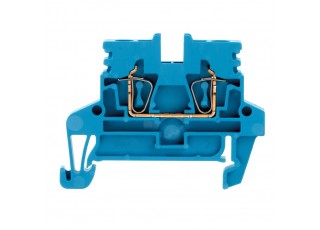

Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, blue

General ordering data

Version	Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, blue
Order No.	1933710000
Type	ZDU 2.5N BL
GTIN (EAN)	4032248586745
Qty.	50 items

Dimensions and weights

	38.5 mm
Depth (inches)	1.516 inch
Depth including DIN rail	39 mm
Height	50.5 mm
Height (inches)	1.988 inch
Width	5.1 mm
Width (inches)	0.201 inch
Net weight	5.48 g

Storage temperature	-25 °C...55 °C
Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Material	Wemid
Colour	blue
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Marking EN 60079-7	Ex eb II C Gb
Ex 2014/34/EU label	II 2 G D

System specifications

Version	Tension-clamp connection for plug-in cross-connector One end without connector
End cover plate required	Yes
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35

Additional technical data

Explosion-tested version	Yes
Open sides	right
Type of mounting	Snap-on

Conductors for clamping (additional connection)

Cross-section for connected wire, AWG, additional connection, max.	AWG 12
Cross-section for connected wire, AWG, additional connection, min.	AWG 24

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clamping range, max.	4 mm²
Clamping range, min.	0.05 mm²
Connection cross-section, stranded, max.	2.5 mm²
Connection cross-section, stranded, min.	1.5 mm²
Connection direction	top
Gauge to IEC 60947-1	A2
Number of connections	2
Stripping length	10 mm
Type of connection	Tension-clamp connection
Wire connection cross section, finely stranded, max.	2.5 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	4 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

CSA rating data

Certificate No. (CSA)	200039-1842498
Current size B (CSA)	24 A
Current size C (CSA)	24 A
Voltage size B (CSA)	300 V
Voltage size C (CSA)	300 V
Wire cross section max. (CSA)	12 AWG
Wire cross section min. (CSA)	30 AWG

Rail	TS 35
Standards	IEC 60947-7-1

Rated cross-section	2.5 mm²
Rated voltage	800 V
Rated DC voltage	800 V
Rated current	24 A
Current at maximum wires	24 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	6 kV
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	12 AWG
Conductor size Factory wiring min. (cURus)	30 AWG
Conductor size Field wiring max. (cURus)	12 AWG
Conductor size Field wiring min. (cURus)	30 AWG
Current size B (cURus)	20 A
Current size C (cURus)	20 A
Voltage size B (cURus)	300 V
Voltage size C (cURus)	300 V

Approval/Certificate/Document of Conformity	[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_68602) [UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253968) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_68531) [INMETRO certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152208) [CCC Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_178485) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_188842) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253969) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37052) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284531) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_64989)
Engineering Data	[Zuken E3.S](LINK/CAE_EN.html)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1933710000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1933710000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1933710000&norm=0)
Product Change Notification	[PCN ZDU2.5N ZPE 2.5N ATEX IECEx change](https://mdcop.weidmueller.com/mediadelivery/asset/900_200585)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) [NTI ZDU/ZPE 2.5N](https://mdcop.weidmueller.com/mediadelivery/asset/900_188869) [User Manual Z-Series](https://mdcop.weidmueller.com/mediadelivery/asset/900_229215)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-01

Approvals	![CCCEX](/picture/CCCEX.gif) ![CE](/picture/CE.gif) ![CSA](/picture/CSA.gif) ![CURUS](/picture/CURUS.gif) ![INMETRO](/picture/INMETRO.gif) ![RINA](/picture/RINA.gif) ![UKEX](/picture/UKEX.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
