1924500000 ZDK 2.5/3AN BL (50 pcs.)

Brand:Weidmüller
Product Code: 1924500000
Availability: Out Of Stock

Get information

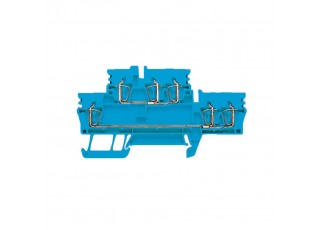

Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, blue

Version	Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, blue
Order No.	1924500000
Type	ZDK 2.5/3AN BL
GTIN (EAN)	4032248563937
Qty.	50 items

Dimensions and weights

	50.5 mm
Depth (inches)	1.988 inch
Depth including DIN rail	51.5 mm
Height	93 mm
Height (inches)	3.661 inch
Width	5.1 mm
Width (inches)	0.201 inch
Net weight	15.12 g

Temperatures

Storage temperature	-25 °C...55 °C
Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Material data

Material	Wemid
Colour	blue
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	DEMKO16ATEX1729U
Certificate No. (IECEX)	IECEXULD16.0025U
Max. voltage (ATEX)	440 V
Current (ATEX)	21 A
Wire cross section max. (ATEX)	2.5 mm²
Max. voltage (IECEX)	440 V
Current (IECEX)	21 A
Wire cross section max. (IECEX)	2.5 mm²
Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Marking EN 60079-7	Ex eb II C Gb
Ex 2014/34/EU label	II 2 G D

System specifications

Version	Tension-clamp connection for plug-in cross-connector One end without connector
End cover plate required	Yes
Number of levels	2
Number of clamping points per level	3
Levels cross-connected internally	No
PE connection	No
Rail	TS 35

Additional technical data

Explosion-tested version	Yes
Open sides	right
Type of mounting	Snap-on

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clamping range, max.	4 mm²
Clamping range, min.	0.05 mm²
Connection cross-section, stranded, max.	2.5 mm²
Connection cross-section, stranded, min.	0.5 mm²
Gauge to IEC 60947-1	A2
Number of connections	6
Stripping length	10 mm
Type of connection	Tension-clamp connection
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 24
Wire connection cross section, finely stranded, max.	2.5 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	4 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

CSA rating data

Certificate No. (CSA)	200039-1842498
Current size B (CSA)	24 A
Current size C (CSA)	24 A
Voltage size B (CSA)	300 V
Voltage size C (CSA)	300 V
Wire cross section max. (CSA)	12 AWG
Wire cross section min. (CSA)	30 AWG

General

Rail	TS 35
Standards	IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 24

Rating data

Rated cross-section	2.5 mm²
Rated voltage	800 V
Rated DC voltage	800 V
Rated current	24 A
Current at maximum wires	24 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	8 kV
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3

UL rating data

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	12 AWG
Conductor size Factory wiring min. (cURus)	30 AWG
Conductor size Field wiring max. (cURus)	12 AWG
Conductor size Field wiring min. (cURus)	30 AWG
Current size B (cURus)	20 A
Current size C (cURus)	20 A
Voltage size B (cURus)	300 V
Voltage size C (cURus)	300 V

Downloads

Approval/Certificate/Document of Conformity	[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_68548) [UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253971) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_85206) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_85207) [INMETRO certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152208) [CCC Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_178487) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253972) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37132) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284531) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_236643)
Engineering Data	[Zuken E3.S](LINK/CAE_EN.html)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1924500000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1924500000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1924500000&norm=0)
User Documentation	[Usage of terminals in EXi atmospheres](https://mdcop.weidmueller.com/mediadelivery/asset/900_73881) [NTI ZDK-PE 2.5/3AN](https://mdcop.weidmueller.com/mediadelivery/asset/900_85213) [NTI ZDK 2.5/3AN DU-PE](https://mdcop.weidmueller.com/mediadelivery/asset/900_85214) [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) [User Manual Z-Series](https://mdcop.weidmueller.com/mediadelivery/asset/900_229215)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-02
