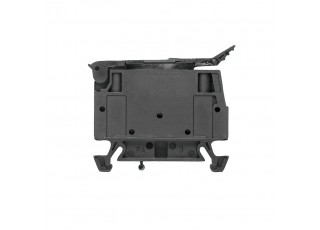

1886590000 WSI 4/LD 10-36V AC/DC (50 pcs.)
- Brand:Weidmüller
- Product Code: 1886590000
- Availability: Out Of Stock
W-Series, Fuse terminal, Rated cross-section: 4 mm², Screw connection
| Version | W-Series, Fuse terminal, Rated cross-section: 4 mm², Screw connection |
| Order No. | 1886590000 |
| Type | WSI 4/LD 10-36V AC/DC |
| GTIN (EAN) | 4032248492077 |
| Qty. | 50 items |
| 42.5 mm | |
| Depth (inches) | 1.673 inch |
| Height | 50.7 mm |
| Height (inches) | 1.996 inch |
| Width | 8 mm |
| Width (inches) | 0.315 inch |
| Net weight | 11.44 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| Material | Wemid |
| Colour | black |
| UL 94 flammability rating | V-0 |
| Version | Screw connection Fuse isolator with LED in closed state |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Cross-section for connected wire, solid, two clampable wires, max. | 1.5 mm² |
| Cross-section for connected wire, solid, two clampable wires, min. | 0.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max. | 1.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min. | 0.5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 1.5 mm² |
| Number of similar terminals | 1 |
| Type of mounting | Snap-on |
| Blade size | 0.6 x 3.5 mm |
| Clampable conductor |
|
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.5 mm² |
| Clamping screw | M 2.5 |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | A3 |
| Number of connections | 2 |
| Stripping length | 8 mm |
| Tightening torque, max. | 0.4 Nm |
| Tightening torque, min. | 0.4 Nm |
| Torque level with DMS electric screwdriver | 2 |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Certificate No. (CSA) | 200039-1575489 |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section min. (CSA) | 30 AWG |
| Operating voltage for display, max. | 36 V |
| Operating voltage for display, min. | 10 V |
| Type of voltage for indicator | AC/DC |
| Cartridge fuse | G-Si. 5 x 20 |
| Display | LED |
| Fuse holder (cartridge holder) | for screw fixing |
| Operating voltage, max. | 36 V |
| Power loss for overload and short-circuit protection for a composite arrangement | 1.6 W at 6.3 A @ 23°C |
| Power loss for overload and short-circuit protection for an individual arrangement | 1.6 W at 6.3 A @ 34°C |
| Power loss for short-circuit protection only for a composite arrangement | 2.5 W at 6.3 A @ 47°C |
| Power loss for short-circuit protection only for an individual arrangement | 4.0 W at 6.3 A @ 63°C |
| Type of voltage for indicator | AC/DC |
| Rail | TS 35 |
| Standards | IEC 60947-7-3 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 22 |
| Rated cross-section | 4 mm² |
| Rated voltage | 36 V |
| Rated voltage to adjoining terminal | 500 V |
| Rated DC voltage | 36 V |
| Rated current | 6.3 A |
| Current at maximum wires | 6.3 A |
| Standards | IEC 60947-7-3 |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Certificate No. (cURus) | E60693 |
| Conductor size Factory wiring max. (cURus) | 12 AWG |
| Conductor size Factory wiring min. (cURus) | 30 AWG |
| Conductor size Field wiring max. (cURus) | 12 AWG |
| Conductor size Field wiring min. (cURus) | 30 AWG |
| Product information | The voltage depends on the selected fuse element or the selected indicator light |
