1877580000 SM 22/22 K MC SDR (16 pcs.)
- Brand:Weidmüller
- Product Code: 1877580000
- Availability: Out Of Stock

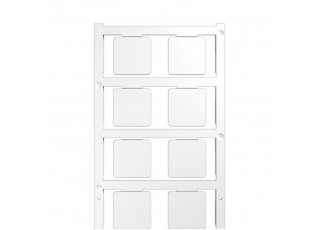

SwitchMark, Device markers, 22 x 22 mm, To customer specification
| Version | SwitchMark, Device markers, 22 x 22 mm, To customer specification |
| Order No. | 1877580000 |
| Type | SM 22/22 K MC SDR |
| GTIN (EAN) | 4032248467853 |
| Qty. | 16 items |
| 1 mm | |
| Depth (inches) | 0.039 inch |
| Height | 22 mm |
| Height (inches) | 0.866 inch |
| Width | 22 mm |
| Width (inches) | 0.866 inch |
| Net weight | 1.25 g |
| Operating temperature range | -40...60 °C |
| Adhesive | Double-sided adhesive tape |
| Colour | To customer specification |
| Colour of printing | black |
| Halogen | No |
| Material | Polyamide 66 |
| Number of markers per combination | 1 MultiCard = Device markers |
| Operating temperature range | -40...60 °C |
| Operating temperature range, max. | 60 °C |
| Operating temperature range, min. | -40 °C |
| Printed characters | Based on customer requirements (Please send M-Print PRO file) |
| Printing method | MC Laser |
| UL 94 flammability rating | V-2 |
| Version | Self-adhesive |
| Width | 22 mm |
| Halogen | No |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1877580000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1877580000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
