1876600000 CC 15/17 K MC SDR (16 pcs.)
- Brand:Weidmüller
- Product Code: 1876600000
- Availability: Out Of Stock

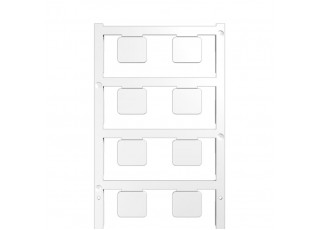

ClipCard, Device markers, 15 x 17 mm, To customer specification
| Version | ClipCard, Device markers, 15 x 17 mm, To customer specification |
| Order No. | 1876600000 |
| Type | CC 15/17 K MC SDR |
| GTIN (EAN) | 4032248467112 |
| Qty. | 16 items |
| 1 mm | |
| Depth (inches) | 0.039 inch |
| Height | 15 mm |
| Height (inches) | 0.591 inch |
| Width | 17 mm |
| Width (inches) | 0.669 inch |
| Net weight | 0.875 g |
| Operating temperature range | -40...60 °C |
| Adhesive | Double-sided adhesive tape |
| Colour | To customer specification |
| Colour of printing | black |
| Halogen | No |
| Material | Polyamide 66 |
| Number of markers per combination | 1 MultiCard = Device markers |
| Operating temperature range | -40...60 °C |
| Operating temperature range, max. | 60 °C |
| Operating temperature range, min. | -40 °C |
| Printed characters | Based on customer requirements (Please send M-Print PRO file) |
| Printing method | MC Laser |
| UL 94 flammability rating | V-2 |
| Version | Self-adhesive |
| Width | 17 mm |
| Halogen | No |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1876600000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1876600000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
