1859410000 CBFP 43.5/10 BK (100 pcs.)
- Brand:Weidmüller
- Product Code: 1859410000
- Availability: Out Of Stock

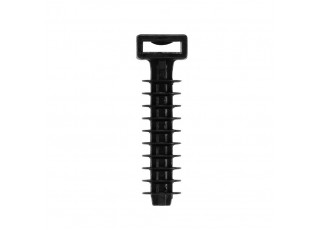

Cable ties, 10 x 10 mm, Plastic, 80 N
| Version | Cable ties, 10 x 10 mm, Plastic, 80 N |
| Order No. | 1859410000 |
| Type | CBFP 43.5/10 BK |
| GTIN (EAN) | 4032248412297 |
| Qty. | 100 items |
| 2 mm | |
| Depth (inches) | 0.079 inch |
| Height | 10 mm |
| Height (inches) | 0.394 inch |
| Width | 10 mm |
| Width (inches) | 0.394 inch |
| Net weight | 1.91 g |
| Operating temperature range | -40...100 °C |
| Diameter of fastening hole | 8 mm |
| For re-opening | No |
| Material | Plastic |
| Max. cable tie width | 9 mm |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Tensile strength | 80 N |
| Tensile strength (Pound-force) | 18 lbf |
| UL 94 flammability rating | V-2 |
| UV-resistant | No |
| Version | for wall mounting |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1859410000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1859410000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 | EC000046 |
| ETIM 8.0 | EC000046 |
| ETIM 9.0 | EC000046 |
| ECLASS 9.0 | 27-14-07-02 |
| ECLASS 9.1 | 27-14-07-02 |
| ECLASS 10.0 | 27-14-07-02 |
| ECLASS 11.0 | 27-14-07-02 |
| ECLASS 12.0 | 27-14-07-02 |
| ECLASS 13.0 | 27-14-07-02 |
| ROHS | Conform |
