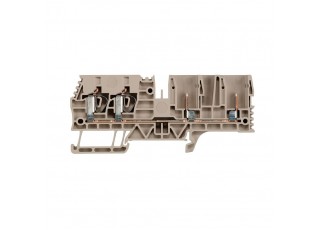

Z-series, Feed-through terminal, Rated cross-section: 4 mm², Plug-in connection, dark beige

General ordering data

Version	Z-series, Feed-through terminal, Rated cross-section: 4 mm², Plug-in connection, dark beige
Order No.	1848350000
Type	ZT 4/4AN/2
GTIN (EAN)	4032248403516
Qty.	50 items

Dimensions and weights

	43 mm
Depth (inches)	1.693 inch
Depth including DIN rail	43.5 mm
Height	100.5 mm
Height (inches)	3.957 inch
Width	6.5 mm
Width (inches)	0.256 inch
Net weight	18.06 g

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

System specifications

Version	2 tension-clamp connections - 2 plug-in connections pluggable
End cover plate required	Yes
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35

Additional technical data

Explosion-tested version	No
Open sides	right
Type of mounting	Snap-on

Conductors for clamping (additional connection)

Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.	4 mm²
Connection type, additional connection	Plug-in connection

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clamping range, max.	6 mm²
Clamping range, min.	0.13 mm²
Connection direction	top
Gauge to IEC 60947-1	A3
Number of connections	2
Stripping length	12 mm
Tube length for twin wire-end ferrule	Cross-section for conductor connection: nominal: 0.5 mm² Cross-section for conductor connection: nominal: 0.75 mm²
Tube length for wire-end ferrule with plastic collar DIN 46228/4	Cross-section for conductor connection: nominal: 0.5 mm² Cross-section for conductor connection: nominal: 0.75 mm² Cross-section for conductor connection: nominal: 1 mm² Cross-section for conductor connection: nominal: 1.5 mm² Cross-section for conductor connection: nominal: 2.5 mm² Cross-section for conductor connection: nominal: 4 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1	Cross-section for conductor connection: nominal: 0.5 mm² Cross-section for conductor connection: nominal: 0.75 mm² Cross-section for conductor connection: nominal: 1 mm² Cross-section for conductor connection: nominal: 1.5 mm² Cross-section for conductor connection: nominal: 2.5 mm² Cross-section for conductor connection: nominal: 4 mm²
Type of connection	Plug-in connection
Wire connection cross section AWG, max.	AWG 10
Wire connection cross section AWG, min.	AWG 26
Wire connection cross section, finely stranded, max.	6 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, solid core, max.	6 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

CSA rating data

Certificate No. (CSA)	200039-1720292
Current size C (CSA)	28 A
Voltage size C (CSA)	600 V
Wire cross section max. (CSA)	10 AWG
Wire cross section min. (CSA)	26 AWG

Rail	TS 35
Standards	In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 10
Wire connection cross section AWG, min.	AWG 26

Rated cross-section	4 mm²
Rated voltage	800 V
Max. voltage of clamp support & pluggable system	800 V
Rated DC voltage	800 V
Rated current	32 A
Current at maximum wires	32 A
Standards	In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1 mΩ
Rated impulse withstand voltage	8 kV
Power loss in accordance with IEC 60947-7-x	1.02 W
Pollution severity	3

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	10 AWG
Conductor size Factory wiring min. (cURus)	26 AWG
Conductor size Field wiring max. (cURus)	10 AWG
Conductor size Field wiring min. (cURus)	26 AWG
Current size C (cURus)	28 A
Voltage size C (cURus)	600 V

Approval/Certificate/Document of Conformity	[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36844) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284531) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224885)
Engineering Data	[Zuken E3.S](LINK/CAE_EN.html)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1848350000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1848350000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1848350000&norm=0)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-01

Approvals	![CE](/picture/CE.gif) ![CSA](/picture/CSA.gif) ![CURUS](/picture/CURUS.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
