1833380000 WDU 10 WS (50 pcs.)

Brand:Weidmüller
Product Code: 1833380000
Availability: Out Of Stock

Get information

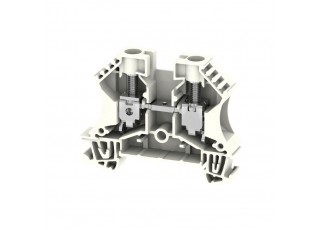

Feed-through terminal, Screw connection, 10 mm², 1000 V, 57 A, white

Version	Feed-through terminal, Screw connection, 10 mm², 1000 V, 57 A, white
Order No.	1833380000
Type	WDU 10 WS
GTIN (EAN)	4050118044904
Qty.	50 items

Dimensions and weights

	46.5 mm
Depth (inches)	1.831 inch
Depth including DIN rail	47 mm
Height	60 mm
Height (inches)	2.362 inch
Width	9.9 mm
Width (inches)	0.39 inch
Net weight	17.88 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Material data

Material	Wemid
Colour	white
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	DEMKO14ATEX1338U
Certificate No. (IECEX)	IECEXULD14.0005U
Max. voltage (ATEX)	690 V
Current (ATEX)	57 A
Wire cross section max. (ATEX)	10 mm²
Max. voltage (IECEX)	690 V
Current (IECEX)	57 A
Wire cross section max. (IECEX)	10 mm²
Marking EN 60079-7	Ex eb II C Gb
Ex 2014/34/EU label	II 2 G D

System specifications

Version	Screw connection for screwable cross-connection One end without connector
End cover plate required	Yes
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Additional technical data

Type of mounting

Snap-on

Conductors for clamping (rated connection)

Clampable conductor	Connection specification: Screw connection Cross-section for conductor connection: Type: solid, H05(07) V-U min.: 1.5 mm² max.: 16 mm² nominal: 10 mm² wire end ferrule: Stripping length: min.: 12 mm max.: 12 mm nominal: 12 mm Tightening torque: min.: 1.2 Nm max.: 1.9 Nm Connection specification: Screw connection Cross-section for conductor connection: Type: stranded, H07V-R min.: 1.5 mm² max.: 16 mm² nominal: 10 mm² wire end ferrule: Stripping length: min.: 12 mm max.: 12 mm nominal: 12 mm Tightening torque: min.: 1.2 Nm max.: 1.9 Nm Connection specification: Screw connection Cross-section for conductor connection: Type: flexible, H05(07) V-K min.: 1.5 mm² max.: 16 mm² nominal: 10 mm² wire end ferrule: Stripping length: min.: 12 mm max.: 12 mm nominal: 12 mm Tightening torque: min.: 1.2 Nm max.: 1.9 Nm
Clamping range, max.	16 mm²
Clamping range, min.	1.31 mm²
Clamping screw	M 4
Connection cross-section, stranded, max.	16 mm²
Connection cross-section, stranded, min.	1.5 mm²
Connection direction	on side
Number of connections	2
Stripping length	12 mm
Tightening torque, max.	1.9 Nm
Tightening torque, min.	1.2 Nm
Twin wire-end ferrules, max.	6 mm²
Twin wire-end ferrules, min.	1.5 mm²
Type of connection	Screw connection
Wire connection cross section AWG, max.	AWG 6
Wire connection cross section AWG, min.	AWG 16
Wire connection cross section, finely stranded, max.	16 mm²
Wire connection cross section, finely stranded, min.	1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	16 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	16 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	1.5 mm²
Wire connection cross-section, solid core, max.	16 mm²
Wire connection cross-section, solid core, min.	1.5 mm²

CSA rating data

Certificate No. (CSA)	200039-1057876
Current size C (CSA)	65 A
Voltage size C (CSA)	600 V
Wire cross section max. (CSA)	6 AWG
Wire cross section min. (CSA)	18 AWG

General

Rail	TS 35
Wire connection cross section AWG, max.	AWG 6
Wire connection cross section AWG, min.	AWG 16

Rating data

Rated cross-section	10 mm²
Rated voltage	1,000 V
Rated DC voltage	1,000 V
Rated current	57 A
Volume resistance according to IEC 60947-7-x	0.56 mΩ
Power loss in accordance with IEC 60947-7-x	1.82 W

Downloads

Approval/Certificate/Document of Conformity	[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35455) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_39462) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) [UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253960) [CB Testreport](https://mdcop.weidmueller.com/mediadelivery/asset/900_42060) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_42061) [POLSKIREJ certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_156118) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253962) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37628) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_39463) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_64186)
Engineering Data	[Zuken E3.S](LINK/CAE_EN.html)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1833380000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1833380000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1833380000&norm=0)
User Documentation	[NTI_ IECEx_WDU-WPE 10.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_35412) [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-01
