1815150000 ZDT 2.5/2 (50 pcs.)

Brand:Weidmüller
Product Code: 1815150000
Availability: Out Of Stock

Get information

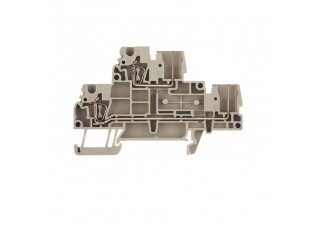

Z-series, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige

Version	Z-series, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige
Order No.	1815150000
Type	ZDT 2.5/2
GTIN (EAN)	4032248340774
Qty.	50 items

Dimensions and weights

	52 mm
Depth (inches)	2.047 inch
Depth including DIN rail	52.5 mm
Height	80.5 mm
Height (inches)	3.169 inch
Width	5.1 mm
Width (inches)	0.201 inch
Net weight	9.67 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Material data

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

System specifications

Version	2 tension-clamp connections - 2 plug-in connections pluggable
End cover plate required	Yes
Number of levels	2
Number of clamping points per level	4
Levels cross-connected internally	No
PE connection	No
Rail	TS 35

Additional technical data

Explosion-tested version	No
Open sides	right
Type of mounting	Snap-on

Conductors for clamping (additional connection)

Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.

2.5 mm²

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clamping range, max.	4 mm²
Clamping range, min.	0.13 mm²
Connection direction	top
Gauge to IEC 60947-1	A2
Number of connections	4
Stripping length	10 mm
Tube length for wire-end ferrule with plastic collar DIN 46228/4	Cross-section for conductor connection: nominal: 0.5 mm² min.: 6 mm nominal: 10 mm max.: 10 mm Cross-section for conductor connection: nominal: 0.75 mm² min.: 6 mm nominal: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 1 mm² nominal: 10 mm min.: 6 mm max.: 12 mm Cross-section for conductor connection: nominal: 1.5 mm² min.: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 2.5 mm² min.: 10 mm max.: 12 mm
Tube length for wire-end ferrule without plastic collar DIN 46228/1	Cross-section for conductor connection: nominal: 0.5 mm² min.: 6 mm nominal: 10 mm max.: 10 mm Cross-section for conductor connection: nominal: 0.75 mm² min.: 6 mm nominal: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 1 mm² nominal: 10 mm min.: 6 mm max.: 12 mm Cross-section for conductor connection: nominal: 1.5 mm² min.: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 2.5 mm² min.: 10 mm max.: 12 mm
Type of connection	Tension-clamp connection
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 26
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	4 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

CSA rating data

Certificate number (cCSAus)	154685-1460993
Current size C (cCSAus)	20 A
Current size D (cCSAus)	5 A
Voltage size C (cCSAus)	300 V
Voltage size D (cCSAus)	600 V
Wire cross section max. (cCSAusX)	12 AWG
Wire cross section min. (cCSAusX)	26 AWG

General

Rail	TS 35
Standards	IEC 61984 In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 26

Rating data

Rated cross-section	2.5 mm²
Rated voltage	500 V
Max. voltage of clamp support & pluggable system	690 V
Rated DC voltage	500 V
Rated current	24 A
Current at maximum wires	24 A
Standards	IEC 61984 In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	6 kV
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3

UL rating data

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	12 AWG
Conductor size Factory wiring min. (cURus)	26 AWG
Conductor size Field wiring max. (cURus)	12 AWG
Conductor size Field wiring min. (cURus)	26 AWG
Current size C (cURus)	20 A
Current size D (cURus)	5 A
Voltage size C (cURus)	300 V
Voltage size D (cURus)	600 V

Downloads

Approval/Certificate/Document of Conformity	[DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152130) [CB Testreport](https://mdcop.weidmueller.com/mediadelivery/asset/900_185121) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_185122) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36864) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284531) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_211877)
Engineering Data	[Zuken E3.S](LINK/CAE_EN.html)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1815150000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1815150000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1815150000&norm=0)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-17
