1790150000 CC-RAIL 1000
- Brand:Weidmüller
- Product Code: 1790150000
- Availability: Out Of Stock

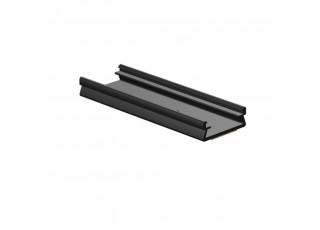

ClipCard, Accessories, 1000 x 17 mm, Self-adhesive, black
| Version | ClipCard, Accessories, 1000 x 17 mm, Self-adhesive, black |
| Order No. | 1790150000 |
| Type | CC-RAIL 1000 |
| GTIN (EAN) | 4032248213610 |
| Qty. | 1 items |
| 6 mm | |
| Depth (inches) | 0.236 inch |
| Height | 1,000 mm |
| Height (inches) | 39.37 inch |
| Width | 17 mm |
| Width (inches) | 0.669 inch |
| Net weight | 10 g |
| Operating temperature range | -20...80 °C |
| Adhesive | Double-sided adhesive tape |
| Application/manufacturer | Self-adhesive |
| Colour | black |
| Halogen | No |
| Material | PVC |
| Number of markers per combination | 1 MultiCard = Accessories |
| Operating temperature range | -20...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | -20 °C |
| UL 94 flammability rating | V-0 |
| Version | Self-adhesive |
| Width | 17 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63734) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1790150000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1790150000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1790150000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
