1784180000 DLD 2.5 DB (50 pcs.)

Brand:Weidmüller
Product Code: 1784180000
Availability: Out Of Stock

Get information

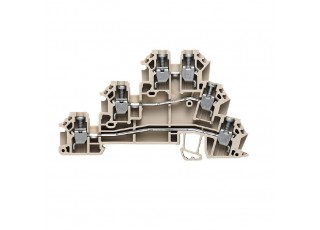

W-Series, Initiator/actuator terminal, Rated cross-section: 2.5 mm², Screw connection

Version	W-Series, Initiator/actuator terminal, Rated cross-section: 2.5 mm², Screw connection
Order No.	1784180000
Type	DLD 2.5 DB
GTIN (EAN)	4032248189854
Qty.	50 items

Dimensions and weights

	48.5 mm
Depth (inches)	1.909 inch
Depth including DIN rail	49 mm
Height	82.5 mm
Height (inches)	3.248 inch
Width	6.2 mm
Width (inches)	0.244 inch
Net weight	15.84 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Material data

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

System specifications

Version	Screw connection One end without connector
End cover plate required	Yes
Number of potentials	3
Number of levels	3
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

2 clampable conductors (H05V/H07V) with equal cross-section (rated connection)

Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.	1 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.	0.5 mm²
Wire connection cross section, finely stranded, two clampable wires, min.	0.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.	1 mm²

Additional technical data

Explosion-tested version	No
Number of similar terminals	1
Open sides	right
Type of mounting	Snap-on

Conductors for clamping (additional connection)

Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.

2.5 mm²

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clampable conductor	Connection specification: Screw connection Cross-section for conductor connection: Type: solid, H05(07) V-U min.: 0.5 mm² max.: 4 mm² nominal: 2.5 mm² wire end ferrule: Stripping length: min.: 7 mm max.: 7 mm nominal: 7 mm Tightening torque: min.: 0.4 Nm max.: 0.6 Nm Connection specification: Screw connection Cross-section for conductor connection: Type: stranded, H07V-R min.: 0.5 mm² max.: 4 mm² nominal: 2.5 mm² wire end ferrule: Stripping length: min.: 7 mm max.: 7 mm nominal: 7 mm Tightening torque: min.: 0.4 Nm max.: 0.6 Nm Connection specification: Screw connection Cross-section for conductor connection: Type: flexible, H05(07) V-K min.: 0.5 mm² max.: 4 mm² nominal: 2.5 mm² wire end ferrule: Stripping length: min.: 7 mm max.: 7 mm nominal: 7 mm Tightening torque: min.: 0.4 Nm max.: 0.6 Nm
Clamping range, max.	4 mm²
Clamping range, min.	0.13 mm²
Clamping screw	M 2.5
Connection cross-section, stranded, max.	4 mm²
Connection cross-section, stranded, min.	0.5 mm²
Connection direction	on side
Gauge to IEC 60947-1	A3
Number of connections	6
Stripping length	7 mm
Tightening torque, max.	0.6 Nm
Tightening torque, min.	0.4 Nm
Torque level with DMS electric screwdriver	1
Type of connection	Screw connection
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 26
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, solid core, max.	4 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

CSA rating data

Certificate No. (CSA)	12400-134
Current size C (CSA)	10 A
Voltage size C (CSA)	300 V
Wire cross section max. (CSA)	12 AWG
Wire cross section min. (CSA)	26 AWG

General

Rail	TS 35
Standards	IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 26

Rating data

Rated cross-section	2.5 mm²
Rated voltage	250 V
Rated DC voltage	250 V
Rated current	24 A
Current at maximum wires	24 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	3.99 mΩ
Rated impulse withstand voltage	4 kV
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3

UL rating data

Certificate No. (UR)	E60693
Conductor size Factory wiring max. (UR)	12 AWG
Conductor size Factory wiring min. (UR)	26 AWG
Conductor size Field wiring max. (UR)	12 AWG
Conductor size Field wiring min. (UR)	22 AWG
Current size D (UR)	10 A
Voltage size D (UR)	300 V
