1782710000 SM-H 27/27 SW (10 pcs.)
- Brand:Weidmüller
- Product Code: 1782710000
- Availability: Out Of Stock

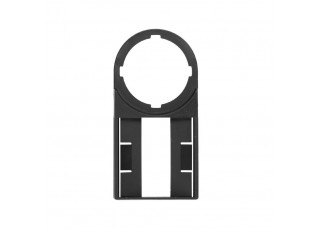

SwitchMark, Accessories, 59 x 27 mm, black
| Version | SwitchMark, Accessories, 59 x 27 mm, black |
| Order No. | 1782710000 |
| Type | SM-H 27/27 SW |
| GTIN (EAN) | 4032248179084 |
| Qty. | 10 items |
| 3.3 mm | |
| Depth (inches) | 0.13 inch |
| Height | 59 mm |
| Height (inches) | 2.323 inch |
| Width | 27 mm |
| Width (inches) | 1.063 inch |
| Diameter | 22 mm |
| Net weight | 2.8 g |
| Operating temperature range | -40...100 °C |
| Colour | black |
| Halogen | No |
| Material | Polyamide 66 |
| Material colour according to resistance code | 0 |
| Number of markers per combination | 1 MultiCard = Accessories |
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| UL 94 flammability rating | V-2 |
| Width | 27 mm |
| Diameter | 22 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63686) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1782710000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1782710000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1782710000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
