1751801687 THM MT30X 38/19 GE
- Brand:Weidmüller
- Product Code: 1751801687
- Availability: Out Of Stock

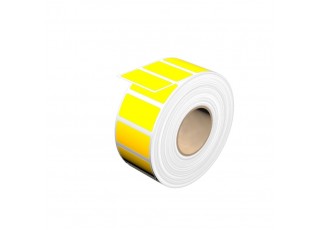

THM, Device markers, 19 x 38 mm, yellow
| Version | THM, Device markers, 19 x 38 mm, yellow |
| Order No. | 1751801687 |
| Type | THM MT30X 38/19 GE |
| GTIN (EAN) | 4032248001552 |
| Qty. | 1 items |
| 0.08 mm | |
| Depth (inches) | 0.003 inch |
| Height | 19 mm |
| Height (inches) | 0.748 inch |
| Width | 38 mm |
| Width (inches) | 1.496 inch |
| Net weight | 260 g |
| Operating temperature range | -40...150 °C |
| Adhesive | Acrylate |
| Colour | yellow |
| Halogen | No |
| Material | Polyester |
| Number of markers per combination | 1 Label reel = Device markers |
| Number per roll | 2000 |
| Operating temperature range | -40...150 °C |
| Operating temperature range, max. | 150 °C |
| Operating temperature range, min. | -40 °C |
| Printing method | Thermal transfer |
| UL 94 flammability rating | V-0 |
| Version | Self-adhesive halogen-free |
| Width | 38 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63349) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1751801687) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1751801687) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1751801687&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
