1724150001 LM MT300 17/9 SI (10 pcs.)
- Brand:Weidmüller
- Product Code: 1724150001
- Availability: Out Of Stock

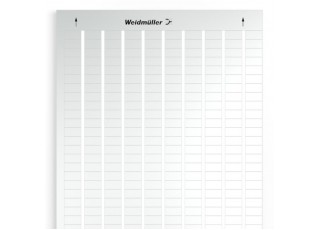

LaserMark, Device markers, 9 x 17.8 mm, silver
| Version | LaserMark, Device markers, 9 x 17.8 mm, silver |
| Order No. | 1724150001 |
| Type | LM MT300 17/9 SI |
| GTIN (EAN) | 4008190368968 |
| Qty. | 10 items |
| 0.08 mm | |
| Depth (inches) | 0.003 inch |
| Height | 9 mm |
| Height (inches) | 0.354 inch |
| Width | 17.8 mm |
| Width (inches) | 0.701 inch |
| Net weight | 12.6 g |
| Operating temperature range | -40...150 °C |
| Adhesive | Acrylate adhesive |
| Approval acc. to UL 969 | Yes |
| Colour | silver |
| Halogen | No |
| Material | Polyester, PVC-free |
| Number of markers per combination | 1 Label sheet = 341 Device markers |
| Number per sheet | 341 |
| Operating temperature range | -40...150 °C |
| Operating temperature range, max. | 150 °C |
| Operating temperature range, min. | -40 °C |
| Printing method | Laser print |
| UL 94 flammability rating | HB |
| Version | Self-adhesive |
| Width | 17.8 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63097) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1724150001) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1724150001) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1724150001&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
