1713290000 ZDK 2.5/D/8 (50 pcs.)

1713290000 ZDK 2.5/D/8 (50 pcs.)

Brand:Weidmüller
Product Code: 1713290000
Availability: Out Of Stock

Get information

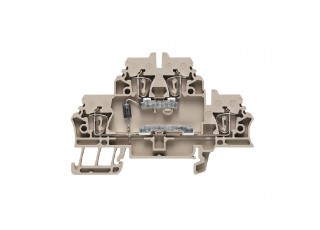

Z-series, Component terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige

General ordering data

Version	Z-series, Component terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige
Order No.	1713290000
Type	ZDK 2.5/D/8
GTIN (EAN)	4008190334260
Qty.	50 items

Dimensions and weights

	53 mm
Depth (inches)	2.087 inch
Depth including DIN rail	54 mm
Height	79.1 mm
Height (inches)	3.114 inch
Width	5.1 mm
Width (inches)	0.201 inch
Net weight	11.52 g

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

System specifications

Version	Tension-clamp connection for plug-in cross-connector One end without connector with diode
End cover plate required	Yes
Number of potentials	1
Number of levels	2
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	Yes
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Additional technical data

Electronic component	Diode
Explosion-tested version	No
Open sides	right
Type of mounting	Snap-on

Component diode

Forward current:

2 A
Reverse voltage:

1,500 V
Forward voltage:

1.6 V

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clamping range, max.	2.5 mm²
Clamping range, min.	0.05 mm²
Connection direction	top
Gauge to IEC 60947-1	A2
Number of connections	4
Stripping length	10 mm
Twin wire-end ferrules, max.	0.34 mm²
Twin wire-end ferrules, min.	0.14 mm²
Type of connection	Tension-clamp connection
Wire connection cross section AWG, min.	AWG 30
Wire connection cross section, finely stranded, max.	2.5 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	2.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

CSA rating data

Certificate No. (CSA)	80053378-200039
Conductor size Factory wiring max. (CSA)	12 AWG
Conductor size Factory wiring min. (CSA)	26 AWG
Conductor size Field wiring max. (CSA)	12 AWG
Conductor size Field wiring min. (CSA)	26 AWG

TS 35 offset

50 mm

Rail	TS 35
Standards	IEC 60947-7-1
Wire connection cross section AWG, min.	AWG 30

Rated cross-section	2.5 mm²
Rated voltage	500 V
Rated DC voltage	500 V
Rated current	0.5 A
Current at maximum wires	0.5 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	6 kV
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3

Certificate No. (UR)	E60693
Conductor size Factory wiring max. (UR)	14 AWG
Conductor size Factory wiring min. (UR)	26 AWG
Conductor size Field wiring max. (UR)	14 AWG
Conductor size Field wiring min. (UR)	26 AWG
Current size C (UR)	15 A
Voltage size C (UR)	300 V

Product information

The allowed continuous operating temperature must be observed

Approval/Certificate/Document of Conformity	[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36758) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284531) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_304603)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1713290000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1713290000&norm=0)
Product Change Notification	[TI_913_ZDK_2.5_D_8_Diode_change](https://mdcop.weidmueller.com/mediadelivery/asset/900_49693)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000903
ETIM 7.0	EC000903
ETIM 8.0	EC000903
ETIM 9.0	EC000903
ECLASS 9.0	27-14-11-27
ECLASS 9.1	27-14-11-47
ECLASS 10.0	27-14-11-27
ECLASS 11.0	27-14-11-27
ECLASS 12.0	27-14-11-27
ECLASS 13.0	27-25-01-14

Approvals	![CE](/picture/CE.gif) ![CSA](/picture/CSA.gif) ![KEMAKEUR](/picture/KEMAKEUR.gif) ![UR](/picture/UR.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (UR)	E60693
