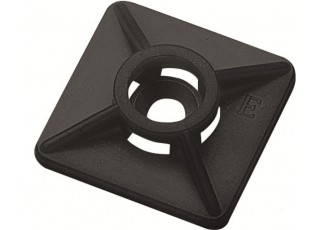

1697960000 CBH 27/27 BK (100 pcs.)
- Brand:Weidmüller
- Product Code: 1697960000
- Availability: Out Of Stock
Cable ties, 27 x 27 mm, Plastic, 80 N
| Version | Cable ties, 27 x 27 mm, Plastic, 80 N |
| Order No. | 1697960000 |
| Type | CBH 27/27 BK |
| GTIN (EAN) | 4008190883034 |
| Qty. | 100 items |
| 2 mm | |
| Depth (inches) | 0.079 inch |
| Height | 27 mm |
| Height (inches) | 1.063 inch |
| Width | 27 mm |
| Width (inches) | 1.063 inch |
| Net weight | 1.6 g |
| Operating temperature range | -40...105 °C |
| For re-opening | No |
| Halogen | No |
| Material | Plastic |
| Max. cable tie width | 4.8 mm |
| Operating temperature range, max. | 105 °C |
| Operating temperature range, min. | -40 °C |
| Tensile strength | 80 N |
| Tensile strength (Pound-force) | 18 lbf |
| UL 94 flammability rating | V-2 |
| UV-resistant | Yes |
| Version | Self-adhesive |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1697960000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1697960000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 | EC000449 |
| ETIM 8.0 | EC000449 |
| ETIM 9.0 | EC000449 |
| ECLASS 9.0 | 23-15-90-07 |
| ECLASS 9.1 | 27-40-07-90 |
| ECLASS 10.0 | 27-40-07-90 |
| ECLASS 11.0 | 23-15-25-09 |
| ECLASS 12.0 | 23-15-25-09 |
| ECLASS 13.0 | 23-15-25-09 |
| ROHS | Conform |
