1690010000 ZDK 2.5/LD RT/1 (50 pcs.)

Get information

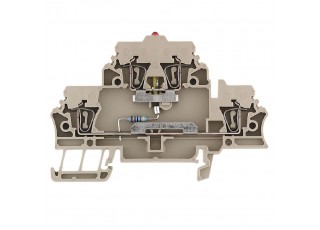

Z-series, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige

Version	Z-series, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige
Order No.	1690010000
Type	ZDK 2.5/LD RT/1
GTIN (EAN)	4008190898274
Qty.	50 items

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Version	Tension-clamp connection with LED for plug-in cross-connector One end without connector
End cover plate required	Yes
Number of potentials	1
Number of levels	2
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	Yes
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Component LED	Colour: red Voltage, min.: 6 V Voltage, max.: 24 V Current: 20 mA
Component resistor	Resistance: 4.7 kOhm Power loss: 0.4 W Tolerance (%): 1 %

Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.

2.5 mm²

Blade size	0.6 x 3.5 mm
Clamping range, max.	2.5 mm²
Clamping range, min.	0.05 mm²
Connection direction	top
Gauge to IEC 60947-1	A2
Number of connections	4
Stripping length	10 mm
Type of connection	Tension-clamp connection
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 26
Wire connection cross section, finely stranded, max.	2.5 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	1.5 mm²
Wire connection cross-section, solid core, max.	2.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

Certificate No. (CSA)	80053378-200039
Conductor size Factory wiring max. (CSA)	12 AWG
Conductor size Factory wiring min. (CSA)	26 AWG
Conductor size Field wiring max. (CSA)	12 AWG
Conductor size Field wiring min. (CSA)	26 AWG

Current	0.05 A
Indicator element	red
Operating voltage for display, max.	24 V
Operating voltage for display, min.	10 V
Type of voltage for indicator	DC

Rail	TS 35
Standards	IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 26

Rated cross-section	2.5 mm²
Rated voltage	24 V
Rated DC voltage	24 V
Rated current	10 A
Current at maximum wires	10 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	2.66 mΩ
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3

Certificate No. (UR)	E60693
Conductor size Factory wiring max. (UR)	14 AWG
Conductor size Factory wiring min. (UR)	26 AWG
Conductor size Field wiring max. (UR)	14 AWG
Conductor size Field wiring min. (UR)	26 AWG

Product information

The allowed continuous operating temperature must be observed

Approval/Certificate/Document of Conformity	[DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152127) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36757) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284531) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_44707)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1690010000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1690010000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1690010000&norm=0)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
