1685690002 SYMBOL-PACK 14X14 ERDE
- Brand:Weidmüller
- Product Code: 1685690002
- Availability: Out Of Stock

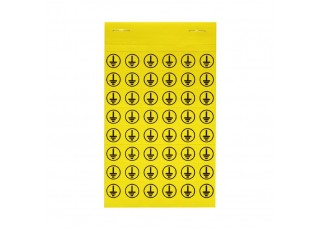

Device markers, Device markers, 14 x 14 mm, yellow
| Version | Device markers, Device markers, 14 x 14 mm, yellow |
| Order No. | 1685690002 |
| Type | SYMBOL-PACK 14X14 ERDE |
| GTIN (EAN) | 4008190490263 |
| Qty. | 1 items |
| 0.08 mm | |
| Depth (inches) | 0.003 inch |
| Height | 14 mm |
| Height (inches) | 0.551 inch |
| Width | 14 mm |
| Width (inches) | 0.551 inch |
| Net weight | 35 g |
| Operating temperature range | -45...80 °C |
| Adhesive | Permanent acrylic copolymer |
| Colour | yellow |
| Colour of printing | black |
| Material | Acrylic-coated fibre webbing |
| Material colour according to resistance code | 4 |
| Number of markers per combination | 1 Label sheet = 48 Device markers |
| Number per sheet | 48 |
| Operating temperature range | -45...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | -45 °C |
| Printed characters | Mixed characters |
| Version | Self-adhesive |
| Width | 14 mm |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1685690002) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1685690002&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
