1683400000 ZDU 2.5/3AN WS (100 pcs.)
- Brand:Weidmüller
- Product Code: 1683400000
- Availability: Out Of Stock

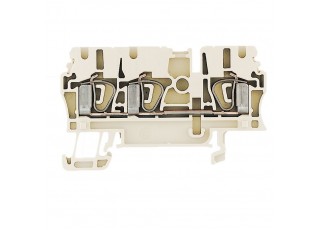

Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, white
| Version | Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, white |
| Order No. | 1683400000 |
| Type | ZDU 2.5/3AN WS |
| GTIN (EAN) | 4008190478100 |
| Qty. | 100 items |
| 38.5 mm | |
| Depth (inches) | 1.516 inch |
| Depth including DIN rail | 39.5 mm |
| Height | 64.5 mm |
| Height (inches) | 2.539 inch |
| Width | 5.1 mm |
| Width (inches) | 0.201 inch |
| Net weight | 9.12 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| Material | Wemid |
| Colour | white |
| UL 94 flammability rating | V-0 |
| Certificate No. (ATEX) | DEMKO15ATEX1467U |
| Certificate No. (IECEX) | IECEXULD15.0008U |
| Max. voltage (ATEX) | 550 V |
| Current (ATEX) | 22 A |
| Wire cross section max. (ATEX) | 4 mm² |
| Max. voltage (IECEX) | 550 V |
| Current (IECEX) | 22 A |
| Wire cross section max. (IECEX) | 4 mm² |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7 | Ex eb II C Gb |
| Ex 2014/34/EU label | II 2 G D |
| Version | Tension-clamp connection for plug-in cross-connector One end without connector |
| End cover plate required | Yes |
| Number of levels | 1 |
| Number of clamping points per level | 3 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| Explosion-tested version | Yes |
| Installation advice | Busbar |
| Number of similar terminals | 1 |
| Open sides | right |
| Type of mounting | Snap-on |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.05 mm² |
| Connection direction | top |
| Gauge to IEC 60947-1 | A3 |
| Number of connections | 3 |
| Stripping length | 10 mm |
| Type of connection | Tension-clamp connection |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Certificate No. (CSA) | 200039-1152892 |
| Current size B (CSA) | 27 A |
| Current size C (CSA) | 27 A |
| Current size D (CSA) | 5 A |
| Voltage size B (CSA) | 600 V |
| Voltage size C (CSA) | 600 V |
| Voltage size D (CSA) | 600 V |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section min. (CSA) | 26 AWG |
| Installation advice | Busbar |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 30 |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 800 V |
| Rated DC voltage | 800 V |
| Rated current | 24 A |
| Current at maximum wires | 31 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Pollution severity | 3 |
| Certificate No. (cURus) | E60693 |
| Conductor size Factory wiring max. (cURus) | 12 AWG |
| Conductor size Factory wiring min. (cURus) | 30 AWG |
| Conductor size Field wiring max. (cURus) | 12 AWG |
| Conductor size Field wiring min. (cURus) | 30 AWG |
| Current size C (cURus) | 25 A |
| Voltage size C (cURus) | 600 V |
| Approval/Certificate/Document of Conformity | [Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_68537) [UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253968) [RINA Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_293477) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37067) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284531) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_68531) [CB Test Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89258) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89259) [DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152127) [Lloyds Register Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_153719) [CCC Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_178485) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_188842) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253969) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_62726) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1683400000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1683400000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1683400000&norm=0) |
| Product Change Notification | [PCN ZDU2.5 3AN ZPE2.5 3AN ATEX IECEx change](https://mdcop.weidmueller.com/mediadelivery/asset/900_200582) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) [NTI ZDU/ZPE 2.5/3AN](https://mdcop.weidmueller.com/mediadelivery/asset/900_188884) [User Manual Z-Series](https://mdcop.weidmueller.com/mediadelivery/asset/900_229215) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
