1652250001 KSW 2,5 24/3,5 1-24 (10 pcs.)
- Brand:Weidmüller
- Product Code: 1652250001
- Availability: Out Of Stock

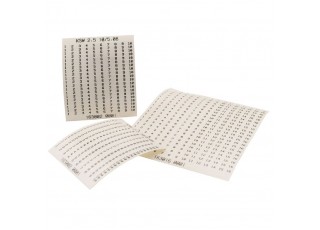

KSW, Terminal marker, 2.5 x 84 mm, Pitch in mm (P): 3.50 Weidmueller, white
| Version | KSW, Terminal marker, 2.5 x 84 mm, Pitch in mm (P): 3.50 Weidmueller, white |
| Order No. | 1652250001 |
| Type | KSW 2,5 24/3,5 1-24 |
| GTIN (EAN) | 4008190402129 |
| Qty. | 10 items |
| Alternative product | [1629920000](~/p/1629920000) |
| Height | 2.5 mm |
| Height (inches) | 0.098 inch |
| Width | 84 mm |
| Width (inches) | 3.307 inch |
| Net weight | 1.4 g |
| Operating temperature range | 150 °C |
| Adhesive | Acrylate |
| Application/manufacturer | Weidmueller |
| Colour | white |
| Colour of printing | black |
| Material | Polyester, PVC-free |
| Material colour according to resistance code | 9 |
| Number per sheet | 20 |
| Operating temperature range | 150 °C |
| Operating temperature range, max. | 150 °C |
| Orientation of print | horizontal |
| Printed characters | Numbers |
| Printing | 1 - 24 |
| Printing method | Thermal transfer |
| Version | Self-adhesive |
| Width | 84 mm |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1652250001) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1652250001&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000761 |
| ETIM 7.0 | EC000761 |
| ETIM 8.0 | EC000761 |
| ETIM 9.0 | EC000761 |
| ECLASS 9.0 | 27-14-11-37 |
| ECLASS 9.1 | 27-14-11-37 |
| ECLASS 10.0 | 27-14-11-37 |
| ECLASS 11.0 | 27-28-11-01 |
| ECLASS 12.0 | 27-28-11-01 |
| ECLASS 13.0 | 27-28-11-01 |
| ROHS | Conform |
