1548130000 APGTB 2.5 2T FT-PE 4C/2 (50 pcs.)

Brand:Weidmüller
Product Code: 1548130000
Availability: Out Of Stock

Get information

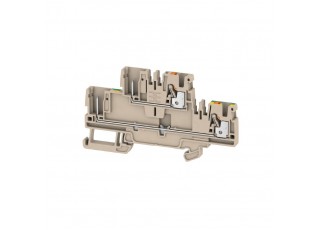

Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, dark beige

Version	Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, dark beige
Order No.	1548130000
Type	APGTB 2.5 2T FT-PE 4C/2
GTIN (EAN)	4050118354010
Qty.	50 items

Dimensions and weights

	50.5 mm
Depth (inches)	1.988 inch
Depth including DIN rail	51 mm
Height	91 mm
Height (inches)	3.583 inch
Width	5.1 mm
Width (inches)	0.201 inch
Net weight	14.74 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Material data

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	TUEV16ATEX7940U
Certificate No. (IECEX)	IECEXTUR16.0046U
Max. voltage (ATEX)	800 V
Current (ATEX)	15 A
Wire cross section max. (ATEX)	2.5 mm²
Max. voltage (IECEX)	800 V
Current (IECEX)	15 A
Wire cross section max. (IECEX)	2.5 mm²
Marking EN 60079-7	Ex ec II C Gc
Ex 2014/34/EU label	II 3 G D

System specifications

End cover plate required	Yes
Number of potentials	2
Number of levels	2
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	Yes
Rail	TS 35
N-function	No
PE function	Yes
PEN function	No

Additional technical data

Installation advice	Rail
Open sides	right
Snap-on	No
Type of fixing	Snap-on
Type of mounting	TS 35
With snap-in pegs	No

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clamping range, max.	4 mm²
Clamping range, min.	0.14 mm²
Connection cross-section, stranded, max.	4 mm²
Connection cross-section, stranded, min.	0.5 mm²
Connection direction	top
Gauge to IEC 60947-1	A3
Number of connections	4
Stripping length	10 mm
Tube length for twin wire-end ferrule	Tube length: nominal: 5 mm min.: 8 mm max.: 12 mm Cross-section for conductor connection: min.: 0.5 mm² nominal: 0.25 mm² max.: 0.75 mm²
Tube length for wire-end ferrule with plastic collar DIN 46228/4	Tube length: nominal: 5 mm min.: 8 mm max.: 12 mm Cross-section for conductor connection: min.: 0.5 mm² nominal: 0.25 mm² max.: 0.75 mm² Tube length: min.: 6 mm max.: 10 mm Cross-section for conductor connection: min.: 0.5 mm² max.: 1 mm² Tube length: min.: 7 mm max.: 12 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 2.5 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1	Tube length: nominal: 5 mm min.: 8 mm max.: 12 mm Cross-section for conductor connection: min.: 0.5 mm² nominal: 0.25 mm² max.: 0.75 mm² Tube length: min.: 6 mm max.: 10 mm Cross-section for conductor connection: min.: 0.5 mm² max.: 1 mm² Tube length: min.: 7 mm max.: 12 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 2.5 mm²
Twin wire-end ferrules, max.	0.75 mm²
Twin wire-end ferrules, min.	0.5 mm²
Type of connection	PUSH IN
Type of connection 2	Plug-in connection
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 28
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	2.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

General

Installation advice	Rail
Rail	TS 35
Standards	In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 28

PE rating data

PEN function

Rating data

Rated cross-section	2.5 mm²
Rated voltage	800 V
Rated DC voltage	800 V
Rated current	24 A
Current at maximum wires	24 A
Standards	In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	8 kV
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3
Surge voltage category	III

UL rating data

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	12 AWG
Conductor size Factory wiring min. (cURus)	28 AWG
Conductor size Field wiring max. (cURus)	12 AWG
Conductor size Field wiring min. (cURus)	28 AWG
Current size B (cURus)	20 A
Current size C (cURus)	20 A
Current size D (cURus)	5 A
Voltage size B (cURus)	600 V
Voltage size C (cURus)	600 V
Voltage size D (cURus)	600 V

Downloads

Approval/Certificate/Document of Conformity

[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_58119)
[ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_58165)
[IECEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_58127)
[DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152120)
[BV certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152184)
[CCC Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_178468)
[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_38629)
