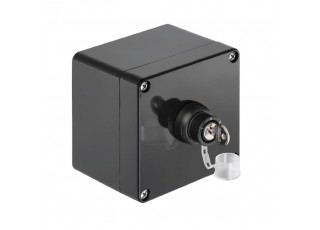

1537090000 KLIPPON CS POK 121209-2
- Brand:Weidmüller
- Product Code: 1537090000
- Availability: Out Of Stock
Klippon Control Station (control and signalling device), Control / signalling device, KLIPPON POK 121209 EX, Glass-fibre reinforced polyester with graphite mixture, Key-operated switch, 1 NC contact, 1 NO contacts, -55 °C...+55 °C, IP54, IP66
| Version | Klippon Control Station (control and signalling device), Control / signalling device, KLIPPON POK 121209 EX, Glass-fibre reinforced polyester with graphite mixture, Key-operated switch, 1 NC contact, 1 NO contacts, -55 °C...+55 °C, IP54, IP66 |
| Order No. | 1537090000 |
| Type | KLIPPON CS POK 121209-2 |
| GTIN (EAN) | 4050118341058 |
| Qty. | 1 items |
| 90 mm | |
| Depth (inches) | 3.543 inch |
| Depth with add-on components | 117 mm |
| Height | 122 mm |
| Height (inches) | 4.803 inch |
| Height of lowest version | 90 mm |
| Width | 120 mm |
| Width (inches) | 4.724 inch |
| Mounting dimension - height | 82 mm |
| Mounting dimension - width | 106 mm |
| Net weight | 1,035 g |
| Ambient temperature | -55 °C...+55 °C |
| Operating temperature | -55 °C...55 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 1d28ada4-1634-4382-8635-45f6353a6574 |
| Certificate No. (ATEX) | TUEV14ATEX7606X |
| Certificate No. (IECEX) | IECEXITA14.0013X |
| Certificate no. Terminal Box (ATEX) | TÜV 14 ATEX 7606 X |
| Certificate no. Terminal Box (IECEx) | IECEx ITA 14.0013X |
| Certificate no. Terminal Box (INMETRO) | LMP 21.0019X |
| 1 Position in enclosure | Key-operated switch |
| Contact design | 1 NC contact 1 NO contacts |
| Operating voltage, max. | 400 V |
| Operating current at 40°C ambient temperature, max. | 1.5 mm² - T6 10 A 1.5 mm² - T5 16 A 2.5 mm² - T6 16 A |
| Operating current at 55°C ambient temperature, max. | 1.5 mm² - T4 16 A 1.5 mm² - T5 10 A 2.5 mm² - T5 16 A |
| Actuators | Key-operated switch 3 switching positions I - 0 - II (I + II) latching Key retractable |
| Drill holes side B | 1 x M25 |
| UL 94 flammability rating | V-0 |
| Lid attachment | Crosshead screws, stainless steel |
| Seal material of operating and display elements | EPDM |
| Enclosure seal material | Silicone (VMQ) |
| Torque for lid screws | 2.5 Nm |
| External earth | Available on request |
| Marking | II 2 G Ex d e IIC T* Gb II 2 D Ex tb IIIC T*°C Db |
| Cable gland clamping area, max. | 17 mm |
| Cable gland clamping area, min. | 12 mm |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Type of mounting | Wall mounting |
| Surface finish | untreated |
| Impact resistance | 7 joules in acc. with IEC60079-0 |
| Temperature class | T4 T5 T6 |
| Material | Glass-fibre reinforced polyester with graphite mixture |
| Drill holes side B | 1 x M25 |
| Material | Glass-fibre reinforced polyester with graphite mixture |
| Approval/Certificate/Document of Conformity | [TUEV14ATEX7606X](https://mdcop.weidmueller.com/mediadelivery/asset/900_157816) [IECEXITA14.0013X](https://mdcop.weidmueller.com/mediadelivery/asset/900_157818) [INMETRO Certificado INMETRO - LMP 21.0019X KCS](https://mdcop.weidmueller.com/mediadelivery/asset/900_213805) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1537090000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1537090000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [PI KLIPPON CS EN](http://download.weidmueller.com/asset/download/file/38179) |
| ETIM 6.0 | EC002503 |
| ETIM 7.0 | EC002503 |
| ETIM 8.0 | EC002503 |
| ETIM 9.0 | EC002503 |
| ECLASS 9.0 | 27-18-05-02 |
| ECLASS 9.1 | 27-18-05-90 |
| ECLASS 10.0 | 27-18-05-02 |
| ECLASS 11.0 | 27-18-05-02 |
| ECLASS 12.0 | 27-18-05-02 |
| ECLASS 13.0 | 27-18-05-02 |
| Approvals |   |
