1517190000 THM EL 30 GE 30M
- Brand:Weidmüller
- Product Code: 1517190000
- Availability: Out Of Stock

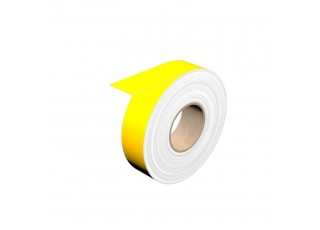

THM, Device markers, 30 x , yellow
| Version | THM, Device markers, 30 x , yellow |
| Order No. | 1517190000 |
| Type | THM EL 30 GE 30M |
| GTIN (EAN) | 4050118325126 |
| Qty. | 1 |
| 0.08 mm | |
| Depth (inches) | 0.003 inch |
| Height | 30 mm |
| Height (inches) | 1.181 inch |
| Length | 30,000 mm |
| Length (inches) | 1,181.1 inch |
| Net weight | 151 g |
| Operating temperature range | -40...150 °C |
| Adhesive | Acrylate adhesive |
| Approval acc. to UL 969 | Yes |
| Colour | yellow |
| Halogen | No |
| Length | 30,000 mm |
| Material | Polyester |
| Number of markers per combination | 1 Label reel = Device markers |
| Number per roll | 1 |
| Number per sheet | 1 |
| Operating temperature range | -40...150 °C |
| Operating temperature range, max. | 150 °C |
| Operating temperature range, min. | -40 °C |
| Printing method | Thermal transfer |
| UL 94 flammability rating | V-0 |
| Version | Endless Self-adhesive |
| Halogen | No |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1517190000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1517190000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
