1513870000 APGTB 2.5 PE 2C/1 (50 pcs.)
- Brand:Weidmüller
- Product Code: 1513870000
- Availability: Out Of Stock

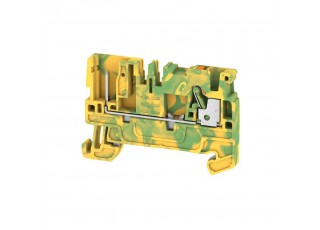

PE terminal, PUSH IN, 2.5 mm², 800 V, Green/yellow
| Version | PE terminal, PUSH IN, 2.5 mm², 800 V, Green/yellow |
| Order No. | 1513870000 |
| Type | APGTB 2.5 PE 2C/1 |
| GTIN (EAN) | 4050118321395 |
| Qty. | 50 items |
| 36.5 mm | |
| Depth (inches) | 1.437 inch |
| Depth including DIN rail | 37 mm |
| Height | 54 mm |
| Height (inches) | 2.126 inch |
| Width | 5.1 mm |
| Width (inches) | 0.201 inch |
| Net weight | 8.73 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Material | Wemid |
| Colour | Green/yellow |
| Colour of operational elements | orange |
| UL 94 flammability rating | V-0 |
| Certificate No. (ATEX) | TUEV16ATEX7940U |
| Certificate No. (IECEX) | IECEXTUR16.0046U |
| Wire cross section max. (ATEX) | 1.5 mm² |
| Wire cross section max. (IECEX) | 1.5 mm² |
| Marking EN 60079-7 | Ex ec II C Gc |
| Ex 2014/34/EU label | II 3 G D |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | Yes |
| Rail | TS 35 |
| N-function | No |
| PE function | Yes |
| PEN function | No |
| Installation advice | Rail |
| Open sides | right |
| Snap-on | No |
| Type of fixing | Snap-on |
| Type of mounting | TS 35 |
| With snap-in pegs | No |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.14 mm² |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
| Connection direction | top |
| Gauge to IEC 60947-1 | A3 |
| Number of connections | 2 |
| Stripping length | 10 mm |
| Tube length for twin wire-end ferrule |
|
| Tube length for wire-end ferrule with plastic collar DIN 46228/4 |
|
| Tube length for wire-end ferrule without plastic collar DIN 46228/1 |
|
| Twin wire-end ferrules, max. | 0.75 mm² |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Type of connection | PUSH IN |
| Type of connection 2 | Plug-in connection |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 28 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 2.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Certificate No. (CSA) | 200039-70089609 |
| Voltage size B (CSA) | 600 V |
| Voltage size C (CSA) | 600 V |
| Voltage size D (CSA) | 600 V |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section min. (CSA) | 28 AWG |
| Installation advice | Rail |
| Rail | TS 35 |
| Standards | In accordance with IEC 60947-7-2 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 28 |
| Rated short-time current | 300 A (2.5 mm²) |
| PEN function | No |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 800 V |
| Rated voltage to adjoining terminal | 800 V |
| Rated DC voltage | 800 V |
| Standards | In accordance with IEC 60947-7-2 |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Certificate No. (cURus) | E60693 |
| Conductor size Factory wiring max. (cURus) | 12 AWG |
| Conductor size Factory wiring min. (cURus) | 28 AWG |
| Conductor size Field wiring max. (cURus) | 12 AWG |
| Conductor size Field wiring min. (cURus) | 28 AWG |
| Voltage size B (cURus) | 600 V |
| Voltage size C (cURus) | 600 V |
| Voltage size D (cURus) | 600 V |
