1480270000 ZDK 2.5-2/4AN BL (50 pcs.)

1480270000 ZDK 2.5-2/4AN BL (50 pcs.)

Brand:Weidmüller
Product Code: 1480270000
Availability: Out Of Stock

Get information

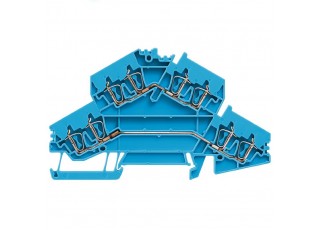

Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 22 A, blue

General ordering data

Version	Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 22 A, blue
Order No.	1480270000
Type	ZDK 2.5-2/4AN BL
GTIN (EAN)	4050118288636
Qty.	50 items

Dimensions and weights

	62 mm
Depth (inches)	2.441 inch
Height	104 mm
Height (inches)	4.094 inch
Width	5.1 mm
Width (inches)	0.201 inch
Net weight	17.876 g

Storage temperature	-25 °C...55 °C
Operating temperature	-50 °C...120 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Material	Wemid
Colour	blue
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	DEMKO16ATEX1808U
Certificate No. (IECEX)	IECEXULD16.0036U
Max. voltage (ATEX)	550 V
Current (ATEX)	19 A
Wire cross section max. (ATEX)	4 mm²
Max. voltage (IECEX)	550 V
Current (IECEX)	19 A
Wire cross section max. (IECEX)	4 mm²
Marking EN 60079-7	Ex eb II C Gb
Ex 2014/34/EU label	II 2 G D

System specifications

Version	Tension-clamp connection for plug-in cross-connector One end without connector
End cover plate required	Yes
Number of levels	2
Number of clamping points per level	4
Levels cross-connected internally	No
PE connection	No
Rail	TS 35

Additional technical data

Type of mounting

Snap-on

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clamping range, max.	4 mm²
Clamping range, min.	0.05 mm²
Connection cross-section, stranded, max.	2.5 mm²
Connection cross-section, stranded, min.	1.5 mm²
Connection direction	top
Gauge to IEC 60947-1	A2
Number of connections	8
Stripping length	10 mm
Type of connection	Tension-clamp connection
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 30
Wire connection cross section, finely stranded, max.	2.5 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	4 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

CSA rating data

Certificate No. (CSA)	200039-1842498
Current size B (CSA)	20 A
Current size C (CSA)	20 A
Current size D (CSA)	5 A
Voltage size B (CSA)	600 V
Voltage size C (CSA)	600 V
Voltage size D (CSA)	600 V
Wire cross section max. (CSA)	12 AWG
Wire cross section min. (CSA)	30 AWG

Rail	TS 35
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 30

Rated cross-section	2.5 mm²
Rated voltage	800 V
Rated DC voltage	800 V
Rated current	22 A
Current at maximum wires	26 A
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	8 kV
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	12 AWG
Conductor size Factory wiring min. (cURus)	30 AWG
Conductor size Field wiring max. (cURus)	12 AWG
Conductor size Field wiring min. (cURus)	30 AWG
Current size B (cURus)	20 A
Current size C (cURus)	20 A
Current size D (cURus)	5 A
Voltage size B (cURus)	600 V
Voltage size C (cURus)	600 V
Voltage size D (cURus)	600 V

Approval/Certificate/Document of Conformity	[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_85248) [UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253973) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_85228) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_85229) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253975) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37123) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284531) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_294597)
Engineering Data	[Zuken E3.S](LINK/CAE_EN.html)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1480270000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1480270000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1480270000&norm=0)
User Documentation	[NTI ZDK 2.5-2/4AN](https://mdcop.weidmueller.com/mediadelivery/asset/900_85249) [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-02

Approvals	![CE](/picture/CE.gif) ![CSA](/picture/CSA.gif) ![CURUS](/picture/CURUS.gif) ![DEMKOATEX](/picture/DEMKOATEX.gif) ![IECEXULD](/picture/IECEXULD.gif) ![UKEX](/picture/UKEX.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
