1463880000 CC-M 27/18 2X3 ST (200 pcs.)
- Brand:Weidmüller
- Product Code: 1463880000
- Availability: Out Of Stock

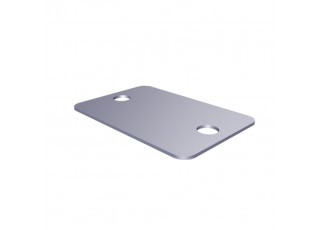

MetalliCard, Device markers, 26.8 x 18 mm, silver
| Version | MetalliCard, Device markers, 26.8 x 18 mm, silver |
| Order No. | 1463880000 |
| Type | CC-M 27/18 2X3 ST |
| GTIN (EAN) | 4050118270044 |
| Qty. | 200 items |
| 0.5 mm | |
| Depth (inches) | 0.02 inch |
| Height | 26.8 mm |
| Height (inches) | 1.055 inch |
| Width | 18 mm |
| Width (inches) | 0.709 inch |
| Net weight | 1.785 g |
| Operating temperature range | -55...130 °C |
| Colour | silver |
| Material | Stainless steel 1.4301 |
| Number of markers per combination | 1 MetalliCard = Device markers |
| Operating temperature range | -55...130 °C |
| Operating temperature range, max. | 130 °C |
| Operating temperature range, min. | -55 °C |
| Recommended industries | Energy Process |
| Size of labelling field | 25 x 15 mm |
| Width | 18 mm |
| Drill-hole diameter | 3.3 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61815) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1463880000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1463880000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1463880000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
