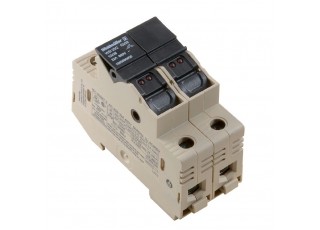

1444230000 WSI 25/2 10X38/LED (6 pcs.)

Get information

W-Series, Fuse terminal, Rated cross-section: 25 mm², Screw connection

Version	W-Series, Fuse terminal, Rated cross-section: 25 mm², Screw connection
Order No.	1444230000
Type	WSI 25/2 10X38/LED
GTIN (EAN)	4050118249491
Qty.	6 items

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Wire connection cross section, finely stranded, two clampable wires, min.	0.75 mm²
Wire cross-section, finely stranded, two clampable wires, max.	10 mm²

Type of mounting

Snap-on

Clampable conductor	Connection specification: Screw connection Cross-section for conductor connection: Type: solid, H05(07) V-U min.: 1.5 mm² max.: 25 mm² nominal: 25 mm² wire end ferrule: Stripping length: min.: 11 mm max.: 11 mm nominal: 11 mm Tightening torque: min.: 2 Nm max.: 2.5 Nm Connection specification: Screw connection Cross-section for conductor connection: Type: stranded, H07V-R min.: 1.5 mm² max.: 25 mm² nominal: 25 mm² wire end ferrule: Stripping length: min.: 11 mm max.: 11 mm nominal: 11 mm Tightening torque: min.: 2 Nm max.: 2.5 Nm Connection specification: Screw connection Cross-section for conductor connection: Type: flexible, H05(07) V-K min.: 1.5 mm² max.: 25 mm² nominal: 25 mm² wire end ferrule: Stripping length: min.: 11 mm max.: 11 mm nominal: 11 mm Tightening torque: min.: 2 Nm max.: 2.5 Nm
Number of connections	4
Stripping length	11 mm
Type of connection	Screw connection

Cartridge fuse

max. 3W for gG/gL max. 1.2W for aM

Rail

TS 35

Rated cross-section	25 mm²
Rated voltage	690 V
Rated voltage to adjoining terminal	690 V
Rated DC voltage	690 V
Rated current	32 A
Current at maximum wires	32 A
Volume resistance according to IEC 60947-7-x	0.32 mΩ
Rated impulse withstand voltage	6 kV
Power loss in accordance with IEC 60947-7-x	3.23 W
Pollution severity	3

Product information

The voltage depends on the selected fuse element or the selected indicator light

Approval/Certificate/Document of Conformity	[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_68095) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284530)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61784)
Engineering Data	[Zuken E3.S](LINK/CAE_EN.html)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1444230000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1444230000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1444230000&norm=0)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Approvals	![CE](/picture/CE.gif) ![CSA](/picture/CSA.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
