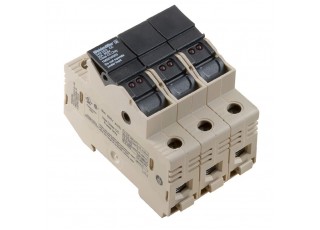

W-Series, Fuse terminal, Rated cross-section: 25 mm², Screw connection

General ordering data

Version	W-Series, Fuse terminal, Rated cross-section: 25 mm², Screw connection
Order No.	1444220000
Type	WSI 25/3 CC/LED
GTIN (EAN)	4050118249422
Qty.	4 items

Dimensions and weights

	58 mm
Depth (inches)	2.283 inch
Height	81 mm
Height (inches)	3.189 inch
Width	54 mm
Width (inches)	2.126 inch
Net weight	104 g

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Material	PA 66/6
Colour	dark beige
UL 94 flammability rating	V-0

System specifications

Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

2 clampable conductors (H05V/H07V) with equal cross-section (rated connection)

Wire connection cross section, finely stranded, two clampable wires, min.	0.75 mm²
Wire cross-section, finely stranded, two clampable wires, max.	10 mm²

Additional technical data

Type of mounting

Snap-on

Conductors for clamping (rated connection)

Clampable conductor	Connection specification: Screw connection Cross-section for conductor connection: Type: solid, H05(07) V-U min.: 1.5 mm² max.: 25 mm² nominal: 25 mm² wire end ferrule: Stripping length: min.: 11 mm max.: 11 mm nominal: 11 mm Tightening torque: min.: 2 Nm max.: 2.5 Nm Connection specification: Screw connection Cross-section for conductor connection: Type: stranded, H07V-R min.: 1.5 mm² max.: 25 mm² nominal: 25 mm² wire end ferrule: Stripping length: min.: 11 mm max.: 11 mm nominal: 11 mm Tightening torque: min.: 2 Nm max.: 2.5 Nm Connection specification: Screw connection Cross-section for conductor connection: Type: flexible, H05(07) V-K min.: 1.5 mm² max.: 25 mm² nominal: 25 mm² wire end ferrule: Stripping length: min.: 11 mm max.: 11 mm nominal: 11 mm Tightening torque: min.: 2 Nm max.: 2.5 Nm
Number of connections	2
Stripping length	11 mm
Type of connection	Screw connection
Wire connection cross section AWG, max.	AWG 4
Wire connection cross section AWG, min.	AWG 18

CSA rating data

Certificate No. (CSA)	238018-1868186
Wire cross section max. (CSA)	3 AWG
Wire cross section min. (CSA)	18 AWG

Cartridge fuse	max. 3W for gG/gL max. 1.2W for aM
Fuse holder (cartridge holder)	Pivoting

Rail	TS 35
Wire connection cross section AWG, max.	AWG 4
Wire connection cross section AWG, min.	AWG 18

Rated cross-section	25 mm²
Rated voltage	690 V
Rated voltage to adjoining terminal	690 V
Rated DC voltage	690 V
Rated current	32 A
Current at maximum wires	32 A
Volume resistance according to IEC 60947-7-x	0.32 mΩ
Rated impulse withstand voltage	6 kV
Power loss in accordance with IEC 60947-7-x	3.23 W
Pollution severity	3
