1393390000 WDU 16 IR (50 pcs.)
- Brand:Weidmüller
- Product Code: 1393390000
- Availability: Out Of Stock

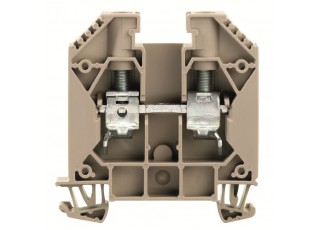

Feed-through terminal, Screw connection, 16 mm², 1000 V, 76 A, dark beige
| Version | Feed-through terminal, Screw connection, 16 mm², 1000 V, 76 A, dark beige |
| Order No. | 1393390000 |
| Type | WDU 16 IR |
| GTIN (EAN) | 4050118323511 |
| Qty. | 50 items |
| 62.5 mm | |
| Depth (inches) | 2.461 inch |
| Height | 60 mm |
| Height (inches) | 2.362 inch |
| Width | 11.9 mm |
| Width (inches) | 0.469 inch |
| Net weight | 29.46 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Certificate No. (ATEX) | DEMKO14ATEX1338U |
| Certificate No. (IECEX) | IECEXULD14.0005U |
| Max. voltage (ATEX) | 690 V |
| Current (ATEX) | 76 A |
| Wire cross section max. (ATEX) | 16 mm² |
| Max. voltage (IECEX) | 690 V |
| Current (IECEX) | 76 A |
| Wire cross section max. (IECEX) | 16 mm² |
| Marking EN 60079-7 | Ex eb II C Gb |
| Ex 2014/34/EU label | II 2 G D |
| Version | Screw connection for screwable cross-connection One end without connector |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | Yes |
| Cross-section for connected wire, solid, two clampable wires, max. | 6 mm² |
| Cross-section for connected wire, solid, two clampable wires, min. | 1.5 mm² |
| Cross-section for connected wire, stranded, two clampable wires, max. | 6 mm² |
| Cross-section for connected wire, stranded, two clampable wires, min. | 1.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max. | 6 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min. | 1.5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 1.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 6 mm² |
| Number of similar terminals | 1 |
| Open sides | right |
| Type of mounting | Snap-on |
| Blade size | TX 15 |
| Clampable conductor |
|
| Clamping range, max. | 25 mm² |
| Clamping range, min. | 0.82 mm² |
| Clamping screw | M 5 |
| Connection cross-section, stranded, max. | 25 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | B7 |
| Number of connections | 2 |
| Stripping length | 16 mm |
| Tightening torque, max. | 4 Nm |
| Tightening torque, min. | 3 Nm |
| Twin wire-end ferrules, max. | 10 mm² |
| Twin wire-end ferrules, min. | 1.5 mm² |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 4 |
| Wire connection cross section AWG, min. | AWG 18 |
| Wire connection cross section, finely stranded, max. | 25 mm² |
| Wire connection cross section, finely stranded, min. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1.5 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 1.5 mm² |
| Certificate No. (CSA) | 200039-1057876 |
| Current size C (CSA) | 85 A |
| Voltage size C (CSA) | 600 V |
| Wire cross section max. (CSA) | 6 AWG |
| Wire cross section min. (CSA) | 18 AWG |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 4 |
| Wire connection cross section AWG, min. | AWG 18 |
| Rated cross-section | 16 mm² |
| Rated voltage | 1,000 V |
| Rated DC voltage | 1,000 V |
| Rated current | 76 A |
| Current at maximum wires | 101 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0.42 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 2.43 W |
| Pollution severity | 3 |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 4 AWG |
| Conductor size Factory wiring min. (UR) | 18 AWG |
| Conductor size Field wiring max. (UR) | 4 AWG |
| Conductor size Field wiring min. (UR) | 18 AWG |
| Current size C (UR) | 85 A |
| Voltage size C (UR) | 600 V |
