1323740000 SM DIA 60-22 MC SDR (2 pcs.)
- Brand:Weidmüller
- Product Code: 1323740000
- Availability: Out Of Stock

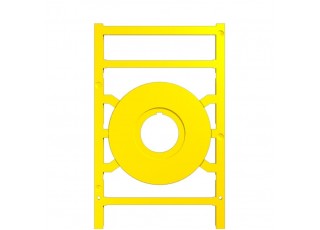

SwitchMark, Device markers, 60 x 60 mm, ø 60 - 22 mm, Siemens 3 SB, Eaton Moeller M22-PV, To customer specification
| Version | SwitchMark, Device markers, 60 x 60 mm, ø 60 - 22 mm, Siemens 3 SB, Eaton Moeller M22-PV, To customer specification |
| Order No. | 1323740000 |
| Type | SM DIA 60-22 MC SDR |
| GTIN (EAN) | 4050118127003 |
| Qty. | 2 items |
| 1.2 mm | |
| Depth (inches) | 0.047 inch |
| Height | 60 mm |
| Height (inches) | 2.362 inch |
| Width | 60 mm |
| Width (inches) | 2.362 inch |
| Diameter | 22 mm |
| Net weight | 7 g |
| Operating temperature range | -40...100 °C |
| Application/manufacturer | ø 60 - 22 mm Siemens 3 SB Eaton Moeller M22-PV |
| Colour | To customer specification |
| Halogen | No |
| Material | Polyamide 66 |
| Number of markers per combination | 1 MultiCard = Device markers |
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Printed characters | Based on customer requirements (Please send M-Print PRO file) |
| UL 94 flammability rating | V-2 |
| Version | Self-adhesive |
| Width | 60 mm |
| Diameter | 22 mm |
| Halogen | No |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1323740000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1323740000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
