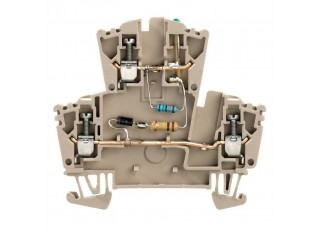

1303670000 WDK 2.5 LD/GN 1D 2R 230 (25 pcs.)

1303670000 WDK 2.5 LD/GN 1D 2R 230 (25 pcs.)

Brand:Weidmüller
Product Code: 1303670000
Availability: Out Of Stock

Get information

W-Series, Feed-through terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Screw connection

General ordering data

Version	W-Series, Feed-through terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Screw connection
Order No.	1303670000
Type	WDK 2.5 LD/GN 1D 2R 230
GTIN (EAN)	4050118102628
Qty.	25 items

Dimensions and weights

	62.5 mm
Depth (inches)	2.461 inch
Height	69 mm
Height (inches)	2.717 inch
Width	5.1 mm
Width (inches)	0.201 inch
Net weight	11.71 g

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1
SCIP	a3090896-0f16-410d-aabb-617cfb571002

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

System specifications

Version	Screw connection with LED
End cover plate required	Yes
Number of potentials	1
Number of levels	2
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	Yes
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Additional technical data

Explosion-tested version	No
Number of similar terminals	1
Open sides	right
Type of mounting	Snap-on

Component diode	Type diode: 1N4007 Forward current: 1 A Reverse voltage: 1,300 V Forward voltage: 0.7 V
Component LED	Colour: green Voltage, min.: 6 V Voltage, max.: 24 V Current: 20 mA
Component resistor	Resistance: 150 kOhm Power loss: 0.4 W Tolerance (%): 1 % Resistance: 100 kOhm Power loss: 0.5 W Tolerance (%): 5 %

Conductors for clamping (rated connection)

Clampable conductor	Connection specification: Screw connection Cross-section for conductor connection: Type: solid, H05(07) V-U min.: 0.5 mm² max.: 4 mm² nominal: 2.5 mm² wire end ferrule: Stripping length: min.: 10 mm max.: 10 mm nominal: 10 mm Connection specification: Screw connection Cross-section for conductor connection: Type: flexible, H05(07) V-K min.: 0.5 mm² max.: 4 mm² nominal: 2.5 mm² wire end ferrule: Stripping length: min.: 10 mm max.: 10 mm nominal: 10 mm
Connection direction	on side
Number of connections	3
Stripping length	10 mm
Type of connection	Screw connection

TS 35 offset

35.5 mm

Rail

TS 35

Rated cross-section	2.5 mm²
Rated voltage	230 V
Rated DC voltage	230 V
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Power loss in accordance with IEC 60947-7-x	0.77 W

Product information

The allowed continuous operating temperature must be observed

Approval/Certificate/Document of Conformity	[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37162) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_51836)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1303670000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1303670000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1303670000&norm=0)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000903
ETIM 7.0	EC000903
ETIM 8.0	EC000903
ETIM 9.0	EC000903
ECLASS 9.0	27-14-11-27
ECLASS 9.1	27-14-11-47
ECLASS 10.0	27-14-11-27
ECLASS 11.0	27-14-11-27
ECLASS 12.0	27-14-11-27
ECLASS 13.0	27-25-01-14

Approvals	![CE](/picture/CE.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
