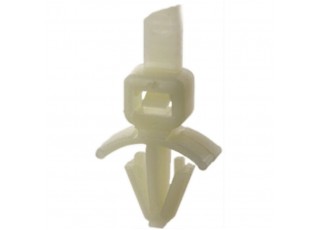

1279300000 CB-DM 200/4,5 NC (100 pcs.)
- Brand:Weidmüller
- Product Code: 1279300000
- Availability: Out Of Stock
Cable ties, 4.5 x 203 mm, Plastic, 220 N
| Version | Cable ties, 4.5 x 203 mm, Plastic, 220 N |
| Order No. | 1279300000 |
| Type | CB-DM 200/4,5 NC |
| GTIN (EAN) | 4008190185930 |
| Qty. | 100 items |
| 2 mm | |
| Depth (inches) | 0.079 inch |
| Height | 203 mm |
| Height (inches) | 7.992 inch |
| Width | 4.5 mm |
| Width (inches) | 0.177 inch |
| Net weight | 1.44 g |
| Operating temperature range | -40...100 °C |
| Bundle diameter, max. | 50 mm |
| Bundle diameter, min. | 3 mm |
| Cable diameter, max. | 50 mm |
| Diameter of fastening hole | 6.3 mm |
| For re-opening | No |
| Material | Plastic |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Tensile strength | 220 N |
| Tensile strength (Pound-force) | 49 lbf |
| UL 94 flammability rating | V-2 |
| UV-resistant | No |
| Version | for cable harnesses |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1279300000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1279300000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 | EC000046 |
| ETIM 8.0 | EC000046 |
| ETIM 9.0 | EC000046 |
| ECLASS 9.0 | 27-14-07-02 |
| ECLASS 9.1 | 27-14-07-02 |
| ECLASS 10.0 | 27-14-07-02 |
| ECLASS 11.0 | 27-14-07-02 |
| ECLASS 12.0 | 27-14-07-02 |
| ECLASS 13.0 | 27-14-07-02 |
| ROHS | Conform |
