1278900000 CB 290/4,5 NC (100 pcs.)
- Brand:Weidmüller
- Product Code: 1278900000
- Availability: Out Of Stock

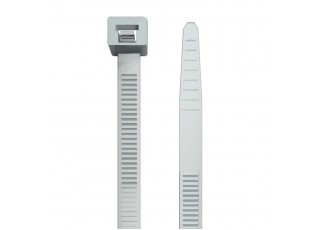

Cable ties, 4.5 x 290 mm, Polyamide 66, 220 N
| Version | Cable ties, 4.5 x 290 mm, Polyamide 66, 220 N |
| Order No. | 1278900000 |
| Type | CB 290/4,5 NC |
| GTIN (EAN) | 4008190094423 |
| Qty. | 100 items |
| 1.4 mm | |
| Depth (inches) | 0.055 inch |
| Height | 290 mm |
| Height (inches) | 11.417 inch |
| Width | 4.5 mm |
| Width (inches) | 0.177 inch |
| Net weight | 1.04 g |
| Operating temperature range | -40...85 °C |
| Bundle diameter, max. | 78 mm |
| Bundle diameter, min. | 3.5 mm |
| Cable diameter, max. | 80 mm |
| For re-opening | No |
| Halogen | No |
| Material | Polyamide 66 |
| Operating temperature range, max. | 85 °C |
| Operating temperature range, min. | -40 °C |
| Tensile strength | 220 N |
| Tensile strength (Pound-force) | 49 lbf |
| UL 94 flammability rating | V-2 |
| UV-resistant | No |
| Approval/Certificate/Document of Conformity | [DE PI830000 160627 001](https://mdcop.weidmueller.com/mediadelivery/asset/900_35393) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60930) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1278900000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1278900000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1278900000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 | EC000046 |
| ETIM 8.0 | EC000046 |
| ETIM 9.0 | EC000046 |
| ECLASS 9.0 | 27-14-07-02 |
| ECLASS 9.1 | 27-14-07-02 |
| ECLASS 10.0 | 27-14-07-02 |
| ECLASS 11.0 | 27-14-07-02 |
| ECLASS 12.0 | 27-14-07-02 |
| ECLASS 13.0 | 27-14-07-02 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E317499 |
