1248580000 SM 18/9.5 K MC NE WS (200 pcs.)
- Brand:Weidmüller
- Product Code: 1248580000
- Availability: Out Of Stock

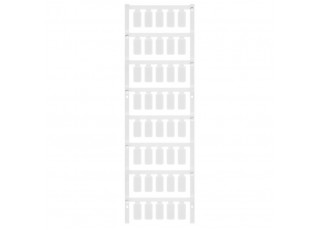

SwitchMark, Device markers, 9.5 x 18 mm, white
| Version | SwitchMark, Device markers, 9.5 x 18 mm, white |
| Order No. | 1248580000 |
| Type | SM 18/9.5 K MC NE WS |
| GTIN (EAN) | 4050118038965 |
| Qty. | 200 items |
| 1 mm | |
| Depth (inches) | 0.039 inch |
| Height | 9.5 mm |
| Height (inches) | 0.374 inch |
| Width | 18 mm |
| Width (inches) | 0.709 inch |
| Net weight | 0.575 g |
| Operating temperature range | -40...60 °C |
| Adhesive | Double-sided adhesive tape |
| Colour | white |
| Halogen | No |
| Material | Polyamide 66 |
| Material colour according to resistance code | 9 |
| Number of markers per combination | 1 MultiCard = Device markers |
| Operating temperature range | -40...60 °C |
| Operating temperature range, max. | 60 °C |
| Operating temperature range, min. | -40 °C |
| UL 94 flammability rating | V-2 |
| Version | Self-adhesive |
| Width | 18 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_52040) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1248580000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1248580000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1248580000&norm=0) |
| Product Change Notification | [Technical change to MultiCard material - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_102023) [Technical change to MultiCard material - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_102024) [MultiCard Material modification](https://mdcop.weidmueller.com/mediadelivery/asset/900_308560) [MultiCard Material Modifikation](https://mdcop.weidmueller.com/mediadelivery/asset/900_308561) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
