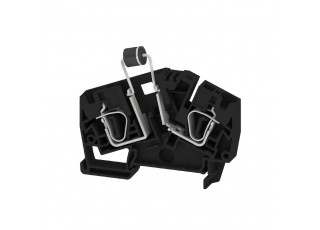

1121120000 ZDU 6-2/D+ (20 pcs.)
- Brand:Weidmüller
- Product Code: 1121120000
- Availability: Out Of Stock
Z-series, Component terminal, Feed-through terminal, Rated cross-section: 6 mm², Tension-clamp connection
| Version | Z-series, Component terminal, Feed-through terminal, Rated cross-section: 6 mm², Tension-clamp connection |
| Order No. | 1121120000 |
| Type | ZDU 6-2/D+ |
| GTIN (EAN) | 4032248902224 |
| Qty. | 20 items |
| 57 mm | |
| Depth (inches) | 2.244 inch |
| Height | 70 mm |
| Height (inches) | 2.756 inch |
| Width | 8.1 mm |
| Width (inches) | 0.319 inch |
| Net weight | 19.93 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 |
| Continuous operating temp., max. | 120 |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | c6099607-b1cd-4fc8-8f5b-8c2defa73093 |
| Material | Wemid |
| Colour | graphite black |
| UL 94 flammability rating | V-0 |
| Version | Tension-clamp connection with diode for plug-in cross-connector One end without connector |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Electronic component | Diode |
| Open sides | right |
| Type of mounting | Snap-on |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 10 mm² |
| Clamping range, min. | 0.5 mm² |
| Connection direction | Inclined / angled |
| Number of connections | 2 |
| Type of connection | Tension-clamp connection |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 10 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Rail | TS 35 |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 22 |
| Rated cross-section | 6 mm² |
| Rated voltage | 1,000 V |
| Rated DC voltage | 1,000 V |
| Rated current | 5 A |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x | 1.31 W |
| Product information | The allowed continuous operating temperature must be observed |
| Approval/Certificate/Document of Conformity | [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36783) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284531) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60439) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1121120000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1121120000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1121120000&norm=0) |
| User Documentation | [Beipackzettel-ZDU6-2D.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_37758) [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000903 |
| ETIM 7.0 | EC000903 |
| ETIM 8.0 | EC000903 |
| ETIM 9.0 | EC000903 |
| ECLASS 9.0 | 27-14-11-27 |
| ECLASS 9.1 | 27-14-11-47 |
| ECLASS 10.0 | 27-14-11-27 |
| ECLASS 11.0 | 27-14-11-27 |
| ECLASS 12.0 | 27-14-11-27 |
| ECLASS 13.0 | 27-25-01-14 |
| Approvals |   |
| ROHS | Conform |
