1114720000 WDU 4/ZZ BL (50 pcs.)

1114720000 WDU 4/ZZ BL (50 pcs.)

Brand:Weidmüller
Product Code: 1114720000
Availability: Out Of Stock

Get information

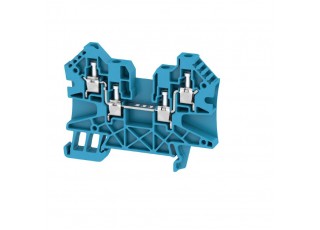

Feed-through terminal, Screw connection, 4 mm², 800 V, 32 A, blue

General ordering data

Version	Feed-through terminal, Screw connection, 4 mm², 800 V, 32 A, blue
Order No.	1114720000
Type	WDU 4/ZZ BL
GTIN (EAN)	4032248893171
Qty.	50 items

Dimensions and weights

	53 mm
Depth (inches)	2.087 inch
Depth including DIN rail	53.5 mm
Height	70 mm
Height (inches)	2.756 inch
Width	6.1 mm
Width (inches)	0.24 inch
Net weight	14.52 g

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Material	Wemid
Colour	blue
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	DEMKO14ATEX1338U
Certificate No. (IECEX)	IECEXULD14.0005U
Max. voltage (ATEX)	690 V
Current (ATEX)	32 A
Wire cross section max. (ATEX)	4 mm²
Max. voltage (IECEX)	690 V
Current (IECEX)	32 A
Wire cross section max. (IECEX)	4 mm²
Marking EN 60079-7	Ex eb II C Gb
Ex 2014/34/EU label	II 2 G D

System specifications

Version	Screw connection Twin connection for plug-in cross-connector One end without connector
Number of levels	1
Number of clamping points per level	4
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35

2 clampable conductors (H05V/H07V) with equal cross-section (rated connection)

Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.	1.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.	0.5 mm²
Wire connection cross section, finely stranded, two clampable wires, min.	0.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.	1.5 mm²

Additional technical data

Explosion-tested version	Yes
Open sides	right
Type of mounting	Snap-on

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clampable conductor	Connection specification: Screw connection Cross-section for conductor connection: Type: solid, H05(07) V-U min.: 0.5 mm² max.: 6 mm² nominal: 4 mm² wire end ferrule: Stripping length: min.: 10 mm max.: 10 mm nominal: 10 mm Tightening torque: min.: 0.5 Nm max.: 0.8 Nm Connection specification: Screw connection Cross-section for conductor connection: Type: flexible, H05(07) V-K min.: 0.5 mm² max.: 4 mm² nominal: 4 mm² wire end ferrule: Stripping length: min.: 10 mm max.: 10 mm nominal: 10 mm Tightening torque: min.: 0.5 Nm max.: 0.8 Nm
Clamping range, max.	6 mm²
Clamping range, min.	0.05 mm²
Clamping screw	M 3
Connection direction	on side
Gauge to IEC 60947-1	A4
Number of connections	4
Stripping length	10 mm
Tightening torque, max.	0.8 Nm
Tightening torque, min.	0.5 Nm
Type of connection	Screw connection
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, solid core, max.	6 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

TS 35 offset

32 mm

Rail	TS 35
Standards	IEC 60947-7-1

Rated cross-section	4 mm²
Rated voltage	800 V
Rated DC voltage	800 V
Rated current	32 A
Current at maximum wires	32 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1 mΩ
Rated impulse withstand voltage	8 kV
Power loss in accordance with IEC 60947-7-x	1.02 W
Pollution severity	3

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	10 AWG
Conductor size Factory wiring min. (cURus)	30 AWG
Conductor size Field wiring max. (cURus)	10 AWG
Conductor size Field wiring min. (cURus)	30 AWG
Current size B (cURus)	30 A
Current size C (cURus)	30 A
Voltage size B (cURus)	600 V
Voltage size C (cURus)	600 V

Approval/Certificate/Document of Conformity	[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35838) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_39462) [UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253960) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253962) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37568) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_39463) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60427)
Engineering Data	[Zuken E3.S](LINK/CAE_EN.html)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1114720000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1114720000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1114720000&norm=0)
User Documentation	[NTI WDU/WPE 4 ZZ](https://mdcop.weidmueller.com/mediadelivery/asset/900_35645) [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
