1107340000 TABPACK FLAG 54/8 WS
- Brand:Weidmüller
- Product Code: 1107340000
- Availability: Out Of Stock

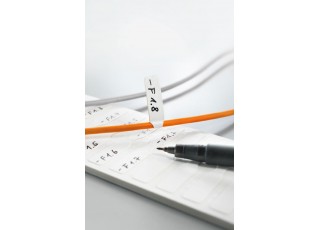

Device markers, Device markers, 8 x 54 mm, white
| Version | Device markers, Device markers, 8 x 54 mm, white |
| Order No. | 1107340000 |
| Type | TABPACK FLAG 54/8 WS |
| GTIN (EAN) | 4032248882625 |
| Qty. | 1 items |
| 0.08 mm | |
| Depth (inches) | 0.003 inch |
| Height | 8 mm |
| Height (inches) | 0.315 inch |
| Width | 54 mm |
| Width (inches) | 2.126 inch |
| Net weight | 27 g |
| Operating temperature range | -29...80 °C |
| Adhesive | Natural rubber adhesive |
| Approval acc. to UL 969 | No |
| Colour | white |
| Halogen | No |
| Material | Cotton fabric |
| Material colour according to resistance code | 9 |
| Number of markers per combination | 1 Label sheet = 12 Device markers |
| Number per sheet | 12 |
| Operating temperature range | -29...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | -29 °C |
| UL 94 flammability rating | V-0 |
| Version | Self-adhesive |
| Width | 54 mm |
| Halogen | No |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1107340000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1107340000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
