1059790000 THM GEW 15/6 GE
- Brand:Weidmüller
- Product Code: 1059790000
- Availability: Out Of Stock

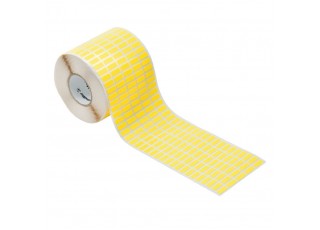

THM, Device markers, 6 x 15 mm, yellow
| Version | THM, Device markers, 6 x 15 mm, yellow |
| Order No. | 1059790000 |
| Type | THM GEW 15/6 GE |
| GTIN (EAN) | 4032248808182 |
| Qty. | 1 items |
| Packaging | Reel |
| 0.3 mm | |
| Depth (inches) | 0.012 inch |
| Height | 6 mm |
| Height (inches) | 0.236 inch |
| Width | 15 mm |
| Width (inches) | 0.591 inch |
| Net weight | 366 g |
| Operating temperature range | -29...80 °C |
| Adhesive | Natural rubber adhesive |
| Approval acc. to UL 969 | No |
| Colour | yellow |
| Halogen | No |
| Material | Cotton fabric |
| Material colour according to resistance code | 4 |
| Number of markers per combination | 1 Label reel = Device markers |
| Number per roll | 10000 |
| Number per sheet | 10000 |
| Operating temperature range | -29...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | -29 °C |
| Printing method | Thermal transfer |
| UL 94 flammability rating | V-0 |
| Version | Self-adhesive |
| Width | 15 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60040) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1059790000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1059790000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1059790000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
